Rocker Cover RH

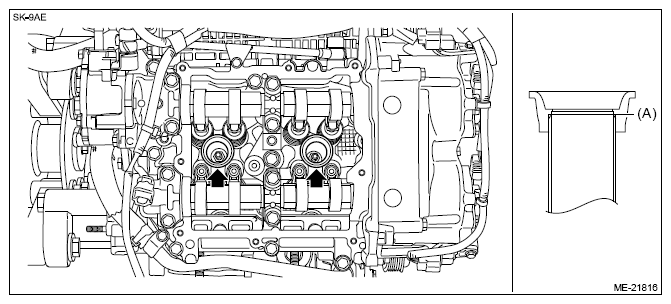

  1. Install new spark plug pipe gaskets to the spark plug pipe.
    NOTE: Apply a light coat of engine oil to the spark plug pipe gaskets, and insert them onto the spark plug pipe edge (A).
    G13224438Courtesy of SUBARU OF AMERICA, INC.

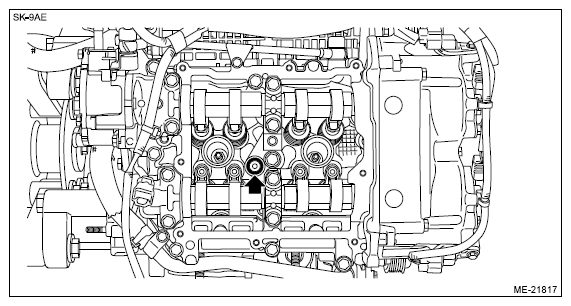

  2. Install new rocker cover gasket (ring type) to the cam carrier RH.
    G13224439Courtesy of SUBARU OF AMERICA, INC.
  3. Install the rocker cover RH.
    1. Install new rocker cover gasket RH to the rocker cover RH.

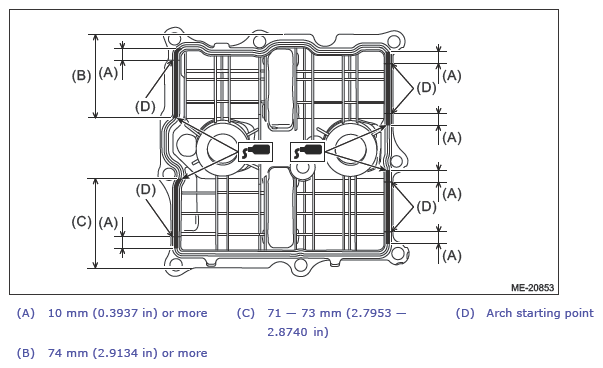

    2. Apply liquid gasket to the mating surface of rocker cover RH as shown in the figure.
      NOTE:
      • Before applying liquid gasket, degrease the old liquid gasket seal surface of the engine.
      • Be careful not to allow liquid gasket to be squeezed out from rocker cover RH.
      • Install within 5 min. after applying liquid gasket.

      Liquid gasket:

      THREE BOND 1217G (part No. K0877Y0100), THREE BOND 1217H or equivalent Liquid gasket applying diameter:

      3±1 mm (0.1181±0.0394 in)

      G13868000Courtesy of SUBARU OF AMERICA, INC.
    3. Set the rocker cover RH on the cam carrier RH, and fasten all bolts until their two or more full threads engage.
    4. Tighten all bolts with a torque of 6.4 N.m (0.7 kgf-m, 4.7 ft-lb) in numerical order as shown in the figure.
    5. Tighten all bolts again with a torque of 6.4 N.m (0.7 kgf-m, 4.7 ft-lb) in numerical order as shown in the figure.
      NOTE: This procedure is necessary to stabilize torque.

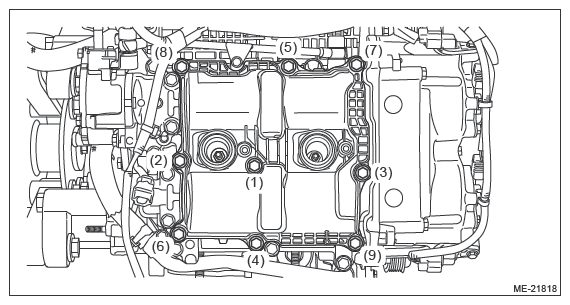

      Fig 1: Rocker Cover RH On Cam Carrier RH Bolts Tightening Sequence
      G13224441Courtesy of SUBARU OF AMERICA, INC.
  4. Install the #1 ignition coil and the #3 ignition coil. Ref. to IGNITION (H4DO)>IGNITION COIL>INSTALLATION .
  5. When working on the vehicle
    NOTE: When working on the vehicle, perform the following steps also.

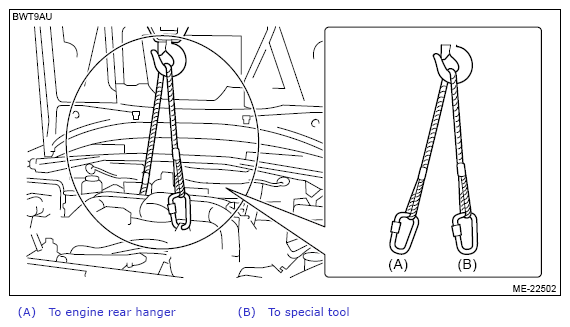

    1. Support the engine with a lifting device and wire ropes.
      G13868002Courtesy of SUBARU OF AMERICA, INC.

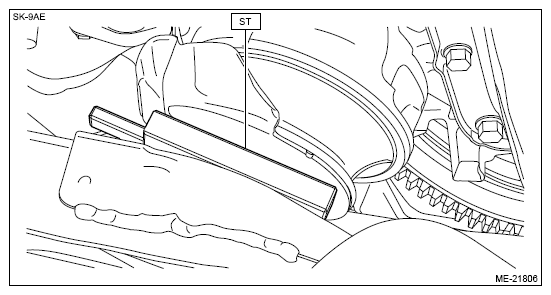

    2. Lift the engine a little, and remove the ST.
      CAUTION: When lifting up the engine, pay attention to the clearance of each part and be careful not to lift the engine too much, in order to prevent damaging the vehicle.
      G13224418Courtesy of SUBARU OF AMERICA, INC.
    3. Lower the engine and remove the lifting device and wire ropes.
    4. Remove the ST1 and ST2 from the engine unit.
      G13224415Courtesy of SUBARU OF AMERICA, INC.
    5. Lift up the vehicle.
    6. Install the nuts which hold the engine mounting to the Cross Member COMPL front.
      CAUTION: Use new nuts.
      NOTE: Make sure that locators (a) of the engine mounting are securely inserted.

      Tightening torque:

      90 N.m (9.2 kgf-m, 66.4 ft-lb)

      G11253186Courtesy of SUBARU OF AMERICA, INC.
    7. Install the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>INSTALLATION .
    8. Lower the vehicle.
    9. Install the pitching stopper. Ref. to PITCHING STOPPER .
    10. Install the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DO)>AIR CLEANER CASE>INSTALLATION .
    11. Connect the ground terminal to battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
    12. Install the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>INSTALLATION .
    13. Set the panel COMPL front hood to the normal position. Ref. to REPAIR CONTENTS>NOTE>STAY ASSEMBLY FRONT HOOD .
    14. Install the striker assembly front hood. Ref. to EXTERIOR BODY PANELS>FRONT HOOD>ASSEMBLY .
    15. Close the panel COMPL front hood.
