Crank Pulley

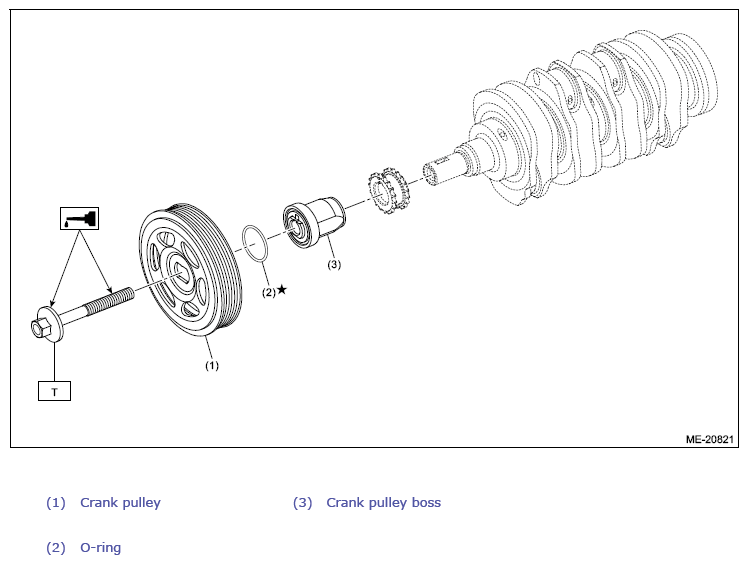

Fig 1: Crank Pulley Components

G13867764

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to MECHANICAL (H4DO)>CRANK PULLEY>INSTALLATION .
