Connecting Rod And Connecting Rod Bearing

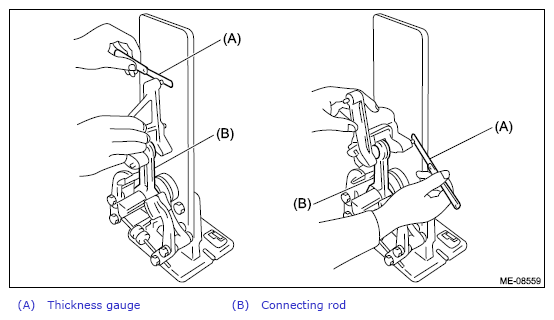

- Check for bend or twist using a connecting rod aligner. If it exceeds the limit, replace the connecting rod.NOTE: Measurement should be performed at a temperature of 20°C (68°F).
Bend or twist per 100 mm (3.9370 in) in length:
Limit
0.10 mm (0.0039 in)
- Check that the large or small end thrust surface of each connecting rod is not damaged.
- Check each connecting rod bearing for scar, peeling, seizure, melting or wear, etc.
- Check the thrust clearance of each connecting rod using a thickness gauge.NOTE: Measurement should be performed at a temperature of 20°C (68°F).
- Clean the #1 connecting rod bearing and the #1 pin of crankshaft, and apply engine oil to the #1 pin of crankshaft.
- Set the #1 connecting rod bearing to the #1 connecting rod and #1 connecting rod cap.
- Set the #1 connecting rod, #1 connecting rod cap and #1 connecting rod cap bolt to the #1 pin of crankshaft.NOTE:
- Each connecting rod has its own mating cap. Make sure that they are assembled correctly by checking their matching symbol.
- Use a new connecting rod cap bolt.
- Apply a coat of engine oil to the #1 connecting rod cap bolt thread.

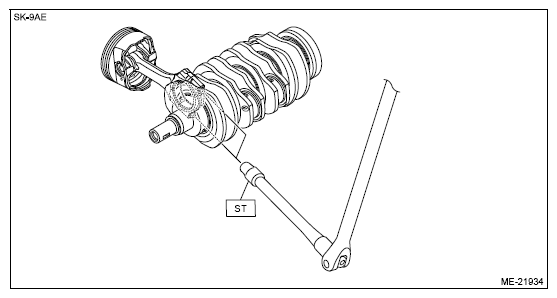

- Using ST, tighten the #1 connecting rod cap bolts to 10 N.m (1.0 kgf-m, 7.4 ft-lb) in numerical order as shown in the figure, then retighten the bolts to 22 N.m (2.2 kgf-m, 16.2 ft-lb) in numerical order as shown in the figure.CAUTION:
- Make sure to hold the crankshaft securely during work.
- When holding the crankshaft, be careful not to damage the crankshaft.
Preparation tool:
ST: SOCKET (18270AA020)
- Using the ST and angle gauge, tighten the #1 connecting rod cap bolts with torque of 135° - 140° in numerical order as shown in the figure.CAUTION:
- Make sure to hold the crankshaft securely during work.
- When holding the crankshaft, be careful not to damage the crankshaft.
NOTE: Prevent angle gauge from rotating using a V-block, etc.Preparation tool:
ST: SOCKET (18270AA020)
- In the same manner, install the #2, #3 and #4 connecting rods.

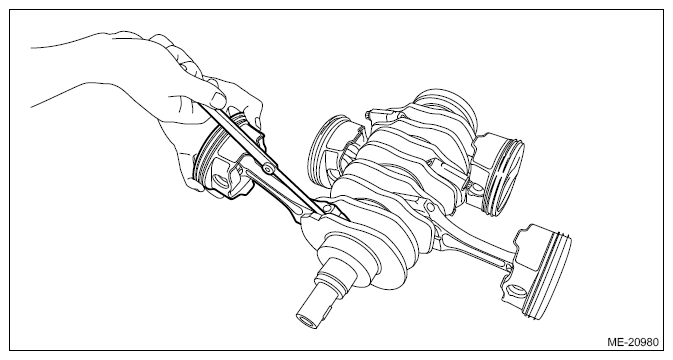

- Check the thrust clearance of each connecting rod using a thickness gauge. If it is not within the standard, replace the connecting rod.NOTE: Measure the thrust clearance of each connecting rod at several points, and replace the connecting rod if there is uneven wear.
Connecting rod thrust clearance:
Standard
0.070 - 0.330 mm (0.0028 - 0.0130 in)
- Check the oil clearance on each connecting rod bearing using plastigage.NOTE: Measurement should be performed at a temperature of 20°C (68°F).
- Clean the #1 connecting rod bearing and the #1 pin of crankshaft.
- Set the #1 connecting rod bearing to the #1 connecting rod and #1 connecting rod cap.
- Place a plastigage across the #1 pin of crankshaft, and set the #1 connecting rod, #1 connecting rod cap and #1 connecting rod cap bolt to the #1 pin of crankshaft.NOTE:
- Each connecting rod has its own mating cap. Make sure that they are assembled correctly by checking their matching symbol.
- Use a new connecting rod cap bolt.
- Apply a coat of engine oil to the #1 connecting rod cap bolt thread.

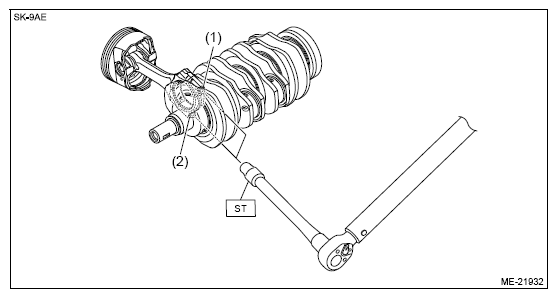

- Using ST, tighten the #1 connecting rod cap bolts to 10 N.m (1.0 kgf-m, 7.4 ft-lb) in numerical order as shown in the figure, then retighten the bolts to 22 N.m (2.2 kgf-m, 16.2 ft-lb) in numerical order as shown in the figure.CAUTION:
- Make sure to hold the crankshaft securely during work.
- When holding the crankshaft, be careful not to damage the crankshaft.
- During tightening, be careful not to move the #1 connecting rod and the #1 connecting rod cap.
Preparation tool:
ST: SOCKET (18270AA020)

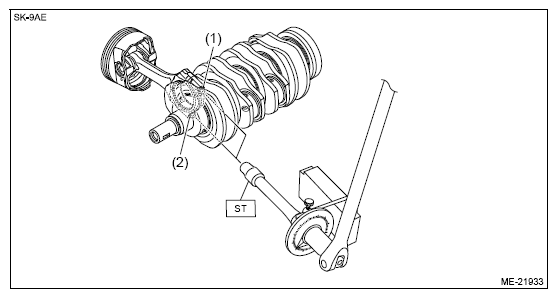

- Using the ST and angle gauge, tighten the #1 connecting rod cap bolts with torque of 135° - 140° in numerical order as shown in the figure.CAUTION:
- Make sure to hold the crankshaft securely during work.
- When holding the crankshaft, be careful not to damage the crankshaft.
- During tightening, be careful not to move the #1 connecting rod and the #1 connecting rod cap.
NOTE: Prevent angle gauge from rotating using a V-block, etc.Preparation tool:
ST: SOCKET (18270AA020)
- Using the ST, loosen the #1 connecting rod cap bolt, and remove the #1 connecting rod cap bolt and #1 connecting rod cap.CAUTION:
- Make sure to hold the crankshaft securely during work.
- When holding the crankshaft, be careful not to damage the crankshaft.
- During removal, be careful not to move the #1 connecting rod and the #1 connecting rod cap.
Preparation tool:
ST: SOCKET (18270AA020)
- Determine oil clearance of the #1 connecting rod bearing by matching the widest point of the plastigage on #1 pin of crankshaft against scale printed on a package of the plastigage. If it is not within the standard, replace the #1 connecting rod bearing.NOTE: Measure the outer diameter of crankshaft pin using micrometer, and select the suitable size connecting rod bearing when replacing the connecting rod bearing.
Unit: mm (in) Bearing Connecting rod bearing thickness (at center) Crankshaft pin outer diameter Connecting rod side Connecting rod cap side Standard Standard Standard Standard size 1.496 - 1.512
(0.0589 - 0.0595)1.492 - 1.508
(0.0587 - 0.0594)47.976 - 48.000
(1.8888 - 1.8898)0.03
(0.0012) Undersize1.515 - 1.519
(0.0596 - 0.0598)1.511 - 1.515
(0.0595 - 0.0596)47.946 - 47.970
(1.8876 - 1.8886)0.05
(0.0020) Undersize1.525 - 1.529
(0.0600 - 0.0602)1.521 - 1.525
(0.0599 - 0.0600)47.926 - 47.950
(1.8868 - 1.8878)0.25
(0.0098) Undersize1.625 - 1.629
(0.0640 - 0.0641)1.621 - 1.625
(0.0638 - 0.0640)47.726 - 47.750
(1.8790 - 1.8799)Connecting rod bearing oil clearance:
Standard
0.017 - 0.047 mm (0.0007 - 0.0019 in)
- Completely remove the plastigage.
- In the same manner, check oil clearance of the #2, #3 and #4 connecting rod bearings.
