Reservoir Tank: Removal

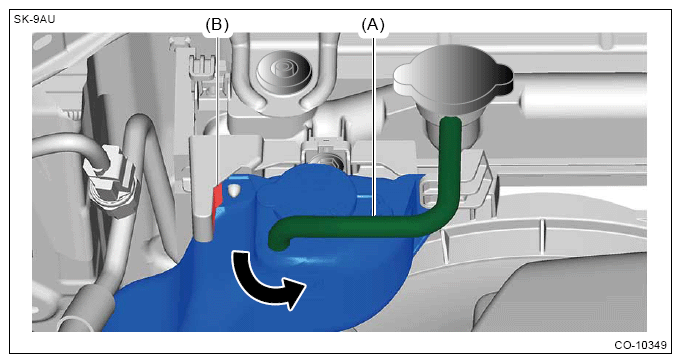

  1. Pull out the over flow hose (A) from the reservoir tank.
  2. Release the claw (B) and pull out the reservoir tank in the direction of the arrow.
G13224772Courtesy of SUBARU OF AMERICA, INC.
