Radiator Main Fan And Fan Motor: Installation
- Install the radiator main fan and fan motor to the vehicle.CAUTION: Confirm that the radiator hose is securely connected.

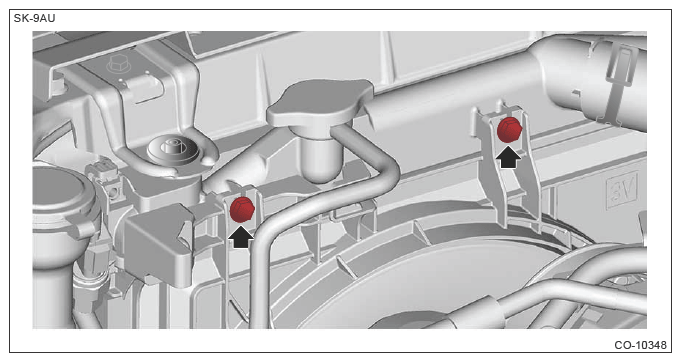

- Install the bolts which hold the radiator main fan shroud onto the radiator.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

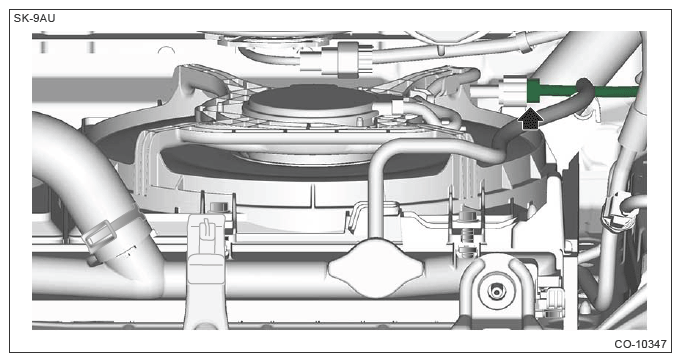

- Connect the connector to the main fan motor assembly.
- Install the reservoir tank. Ref. to COOLING (H4DO)>Reservoir Tank>INSTALLATION .
- Install the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
