Location
Radiator Fan Relay: Location

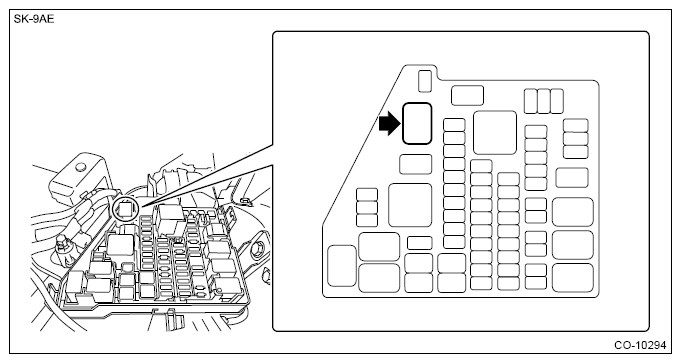

Main fan relay 1
Courtesy of SUBARU OF AMERICA, INC.

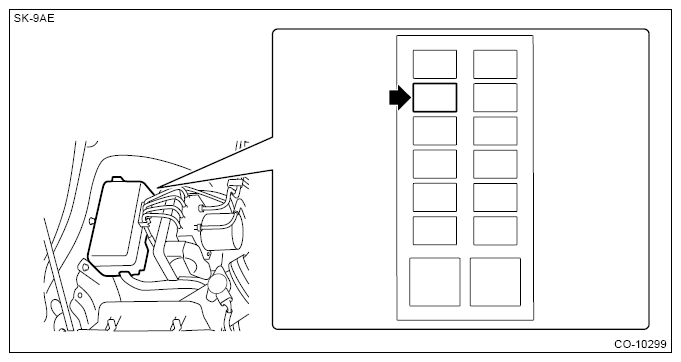

Main fan relay 2
Courtesy of SUBARU OF AMERICA, INC.

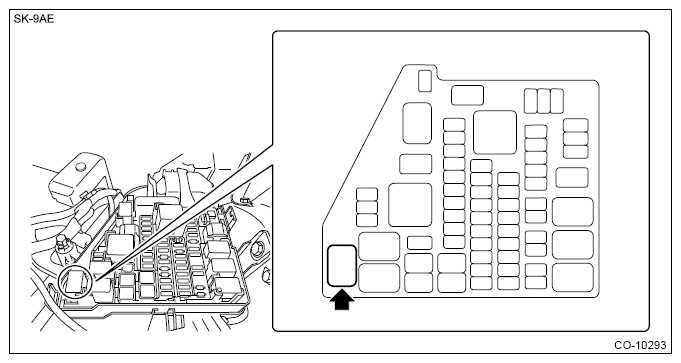

Sub fan relay
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
