Home >> Subaru >> 2021 >> Forester Base >> Repair and Diagnosis >> Electrical >> Starter >> Auto Start Stop System (Diagnostics) >> Electrical Component Location >> Location

Auto Start Stop System (Diagnostics): Electrical Component Location: Location

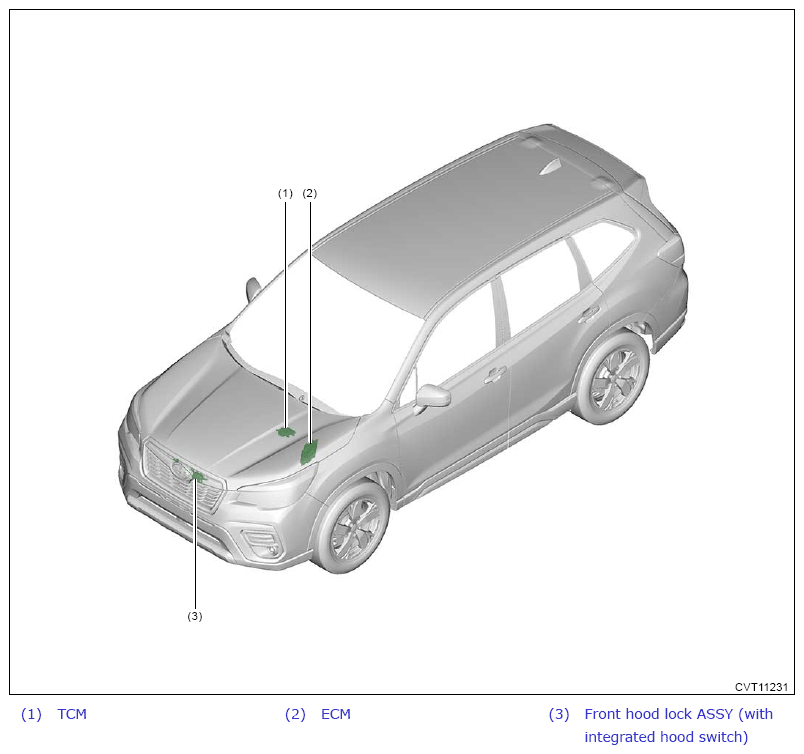

G13874889Courtesy of SUBARU OF AMERICA, INC.

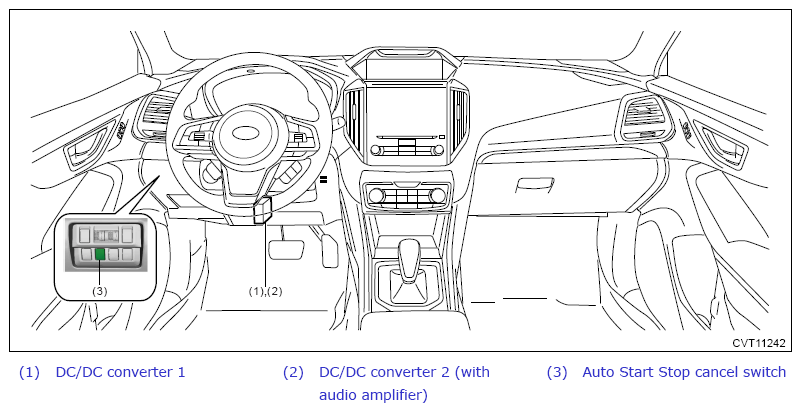

G13874890Courtesy of SUBARU OF AMERICA, INC.

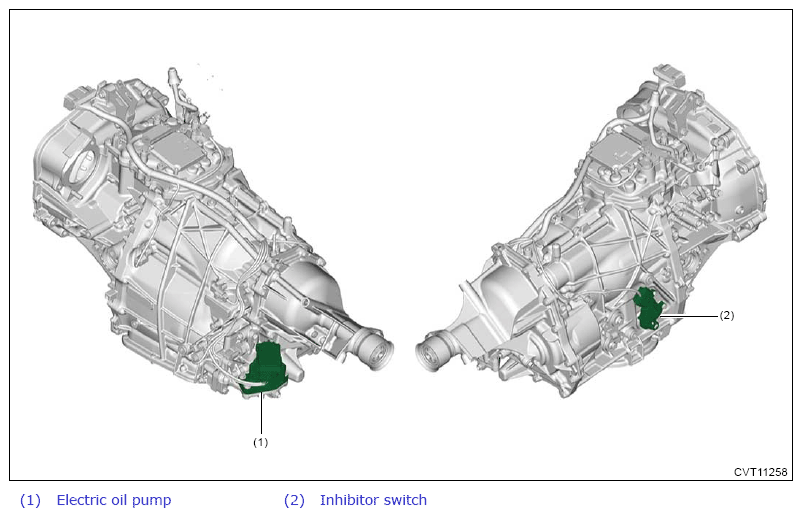

G13874891Courtesy of SUBARU OF AMERICA, INC.

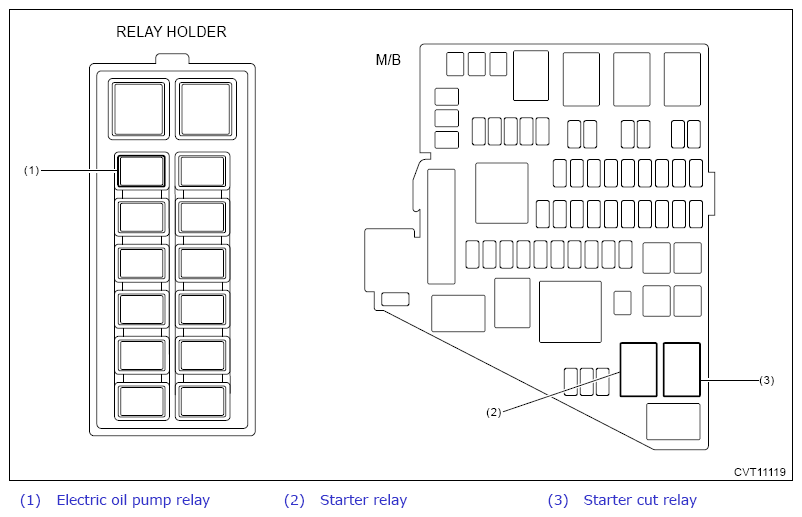

G13874892Courtesy of SUBARU OF AMERICA, INC.
