Front Disc Brake

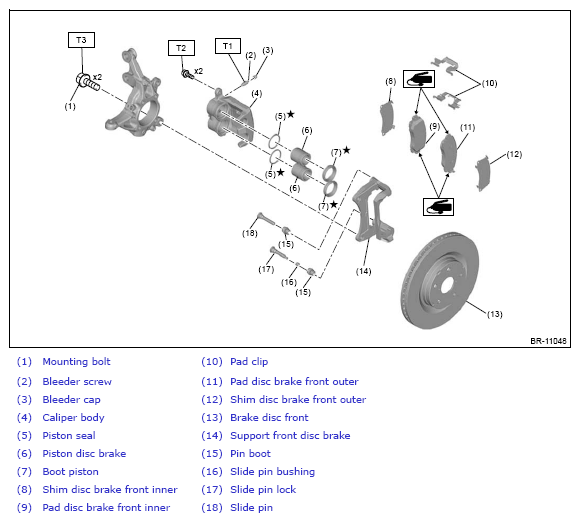

Fig 1: Exploded View Of Front Disc Brake Components (16-Inch Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 27 (2.8, 19.9)

T3: 135 (13.8, 99.6)

• 17-inch model

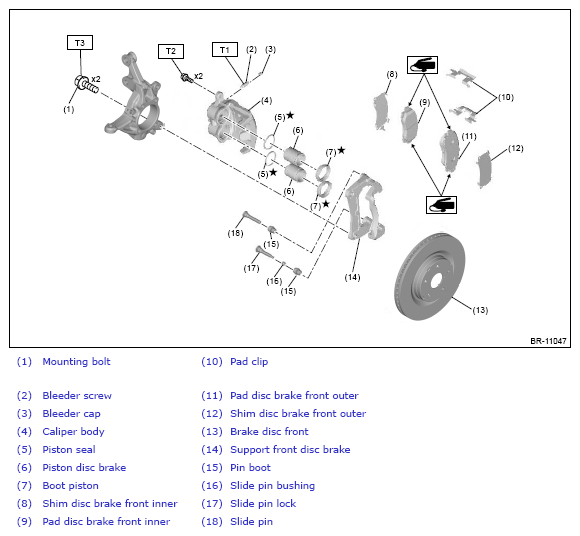

Fig 2: Exploded View Of Front Disc Brake Components (17-Inch Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2; 27 (2.8, 19.9)

T3; 135 (13.8, 99.6)
