Front Disc Brake Assembly: Removal

CAUTION:
  • Do not allow brake fluid to come in contact with the painted surface of the vehicle body. If it does, wash off with water and wipe away completely.
  • Prepare a container to catch grease or oil, etc. If any grease or oil spills, wipe it off and clean immediately to prevent from penetrating into floor or flowing outside.
  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the union bolt and brake hose front.
    G13225376Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the caliper bolt, and remove the caliper body.
    G13225377Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the pad disc brake front.
    G13225378Courtesy of SUBARU OF AMERICA, INC.

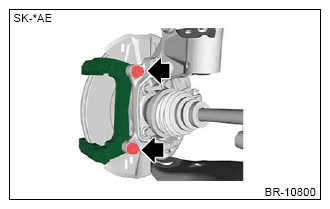

  5. Remove the mounting bolts, and then remove the support front disc brake.
    G13225379Courtesy of SUBARU OF AMERICA, INC.
