Sunroof Switch: Removal
- Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
- Remove the overhead console. (Models without EyeSight) Ref. to INSTRUMENTATION/DRIVER INFO>WARNING BOX>REMOVAL .
- Remove the cover assembly stereo camera. (Models with EyeSight) Ref. to EYESIGHT>STEREO CAMERA>REMOVAL .

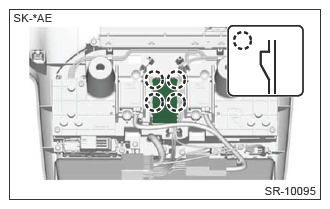

- Release the claws, and then remove the sunroof switch.
CAUTION:
Be careful not to damage the engaging portion.
