Console Box: Assembly

  1. Install the console box LWR.
  2. Install the lid assembly console.
  3. Install the AUX unit rear and the switch assembly rear seat heater to the cover rear console assembly.
  4. Install the grille assembly console rear to the cover rear console assembly.
  5. Install the cover rear console assembly.
  6. Install the cord assembly power. (Model with AUX unit rear)

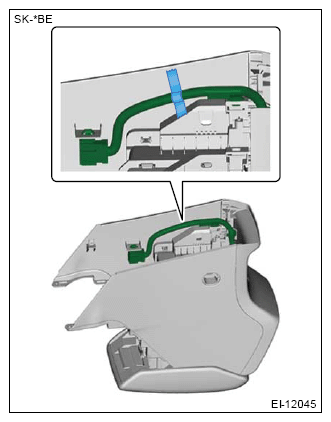

  7. Install the cord assembly rear seat heater and fix it with tape as shown in the figure. (Model with rear seat heater)

    Preparation items:

    Part No.: 86359SC000/TAPE

    NOTE: Use the tape (service parts) by cutting into 110 mm x 20 mm (4.3 in x 0.8 in).
    G13227104Courtesy of SUBARU OF AMERICA, INC.
  8. Install the duct console rear.
  9. Install the socket assembly.
