Access Buzzer: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Lift up the vehicle.
  3. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  4. Remove the screw and clips, and turn over the mud guard front LH.
    G13226398Courtesy of SUBARU OF AMERICA, INC.

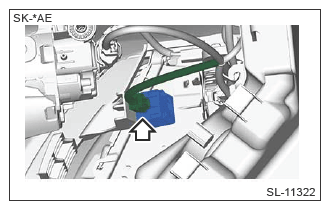

  5. Remove the access buzzer.
    1. Disconnect the connector.
    2. Remove the clip and detach the access buzzer.
G13226950Courtesy of SUBARU OF AMERICA, INC.
