Wiper Blade: Disassembly: Front

  1. Hold the rubber assembly windshield wiper, and pull it in the arrow (1) direction to the slit position (2) of the arm assembly windshield.
  2. Pull out the rubber assembly windshield wiper from the slit of the arm assembly (3).
    G11246038Courtesy of SUBARU OF AMERICA, INC.

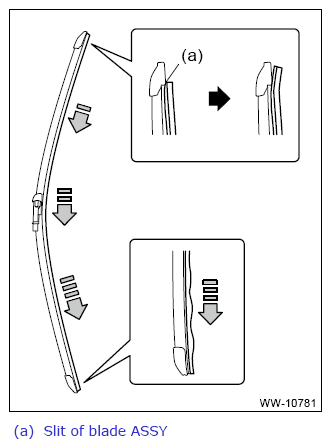

    NOTE: Shorten the entire rubber assembly windshield wiper in the arrow direction at three or four places.
    G13870054Courtesy of SUBARU OF AMERICA, INC.
