Washer Fluid Level Sensor
- Check the connection status of washer fluid level sensor connector.
- Does the low washer fluid warning light illuminate after draining the washer fluid? And does the low washer fluid warning light go off after refilling the washer fluid?
- Yes → Normal operation .
- No → Perform step 3) .
- Using a tester, measure the voltage of the washer fluid level sensor connector.
- Is the voltage approx. 8.5 V or more?
- Yes → Perform step 4) .
- No → Check harness and meter, and replace if necessary .
- Is the voltage approx. 8.5 V or more?
- Does the meter indicator illuminate if you short the washer fluid level sensor connector?
- Yes → Perform step 5) .
- No → Check meter, and replace if necessary .

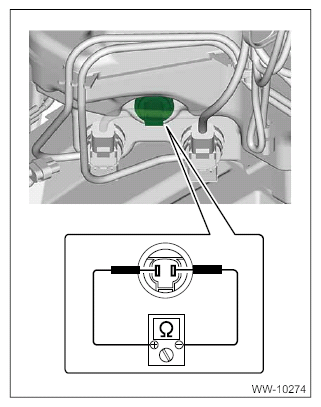

- Using a tester, measure the resistance of the washer fluid level sensor.
- Turn over the mud guard front LH.
- Measure the resistance of the washer fluid level sensor.
Amount of washer fluid in the tank Standard No remaining quantity (ON) Less than 10 Ω There is remaining quantity (OFF) 1 MΩ or more - Is the resistance within the standard?
- Yes → Normal operation .
- No → Replace the washer level sensor .
