Front Wiper Motor And Link: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the arm assembly windshield wiper. Ref. to WIPER AND WASHER SYSTEMS>Front Wiper Arm>REMOVAL .
  3. Remove the cowl panel side and the cowl panel assembly. Ref. to EXTERIOR/INTERIOR TRIM>COWL PANEL>REMOVAL .
    CAUTION: Before removing the cowl panel, use an air blower and nylon brush to sweep gravel from the lower area of the front side of the glass.
  4. Remove the link assembly windshield wiper.
    1. Remove the bolt.
    2. Slide the entire link assembly in the arrow direction and remove the link assembly windshield wiper.
    3. Disconnect the connector of the motor assembly windshield wiper and remove the link assembly windshield wiper.

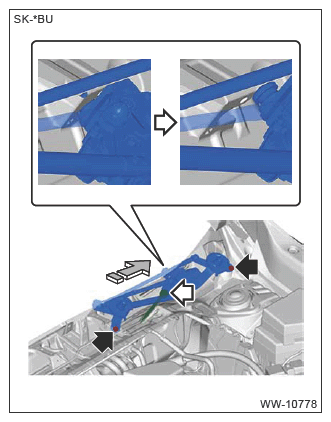

    G13592895Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the motor assembly windshield wiper.
    1. Using a crowbar wrapped with protective tape, disconnect the link assembly windshield wiper from the link plate.
    2. Remove the bolts, and remove the motor assembly windshield wiper.

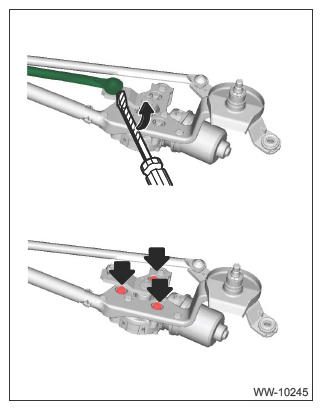

    G11246058Courtesy of SUBARU OF AMERICA, INC.
