MODELS WITHOUT EyeSight

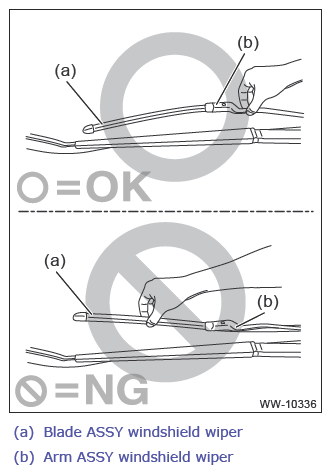

CAUTION:
  • When standing up the arm assembly windshield wiper, perform the driver's side first in order not to interfere the arms with each other  .
  • When standing up the arm assembly windshield wiper, make sure to hold the arm portion. Holding the blade portion may cause the blade deformation  .
G13870058Courtesy of SUBARU OF AMERICA, INC.

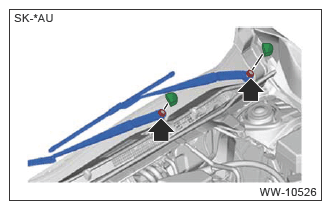

  1. Remove the cap windshield wiper arm.
  2. Remove the nuts, and remove the arm assembly windshield wiper.
G13226484Courtesy of SUBARU OF AMERICA, INC.
