Combination Switch (Wiper): Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the column cover assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>REMOVAL .
  3. Remove the switch assembly combination wiper.
    1. Disconnect the connector.

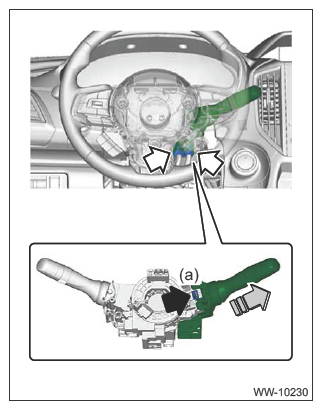

    2. Press the claws (a), and pull out the switch assembly combination wiper.
    CAUTION: Do not press the claws with excessive force. They may be damaged.
    G11246030Courtesy of SUBARU OF AMERICA, INC.
