Rear Gate Light: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the light assembly rear gate.
    CAUTION: When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.

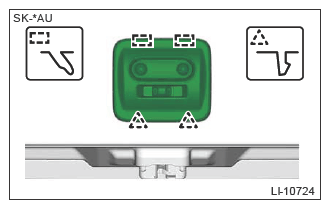

    1. Release the claws, and remove the light assembly rear gate.
      G13226436Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector.
