Back-Up Light Bulb: Removal

CAUTION:
  • Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
  • Do not leave the light assembly finisher rear without the bulb for a long time. Dust, moisture, etc. entering the light may affect its performance.
  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the cap rear gate.
    G13869995Courtesy of SUBARU OF AMERICA, INC.

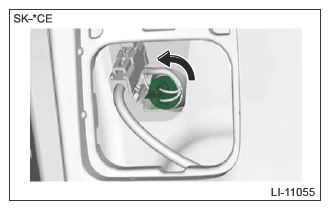

  3. Rotate in the direction of arrow shown in the figure to remove the bulb socket.
    G13869996Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the back-up light bulb.
