Home >> Subaru >> 2021 >> Forester Base >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Entertainment System >> Switches And Harness >> Removal >> Telematics Button

Telematics Button

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the light assembly map. Ref. to LIGHTING SYSTEM>SPOT MAP LIGHT>NOTE .
  3. Remove the telematics button.

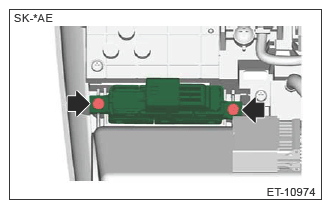

    1. Remove the screws and remove the telematics button.
    G13226550Courtesy of SUBARU OF AMERICA, INC.
