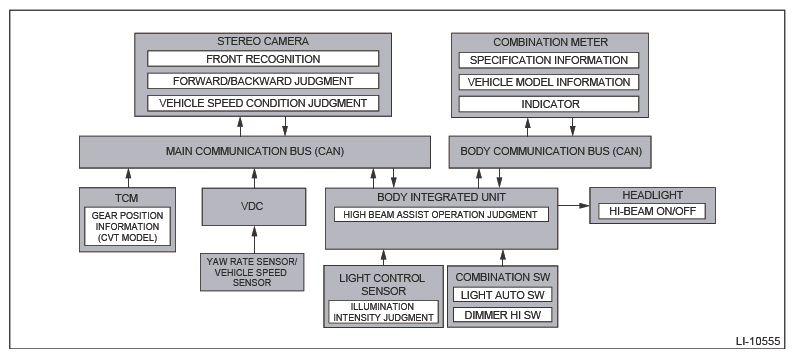

System Block Diagram
 Courtesy of SUBARU OF AMERICA, INC.
|
NOTE:
The high beam assist system uses the stereo cameras of the EyeSight system to recognize the conditions in front of the vehicle, and automatically switches the high beam and low beam of the headlight.
