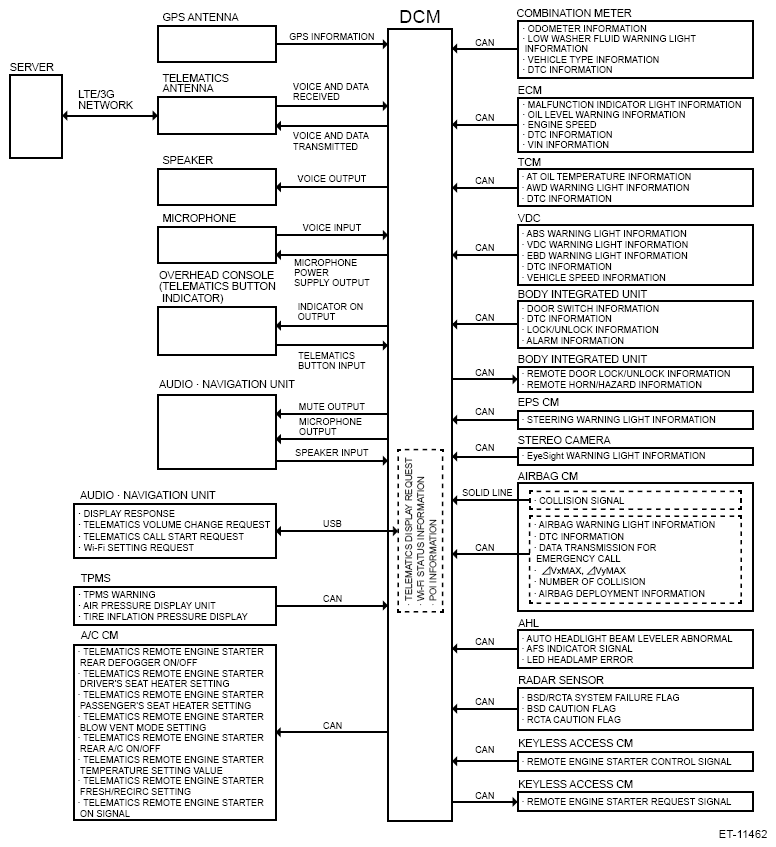

System Block Diagram

Main signals used between DCM and relevant control module

G13877523Courtesy of SUBARU OF AMERICA, INC.
