Check List For Interview: Check

Inspect the following items regarding the vehicle's state.

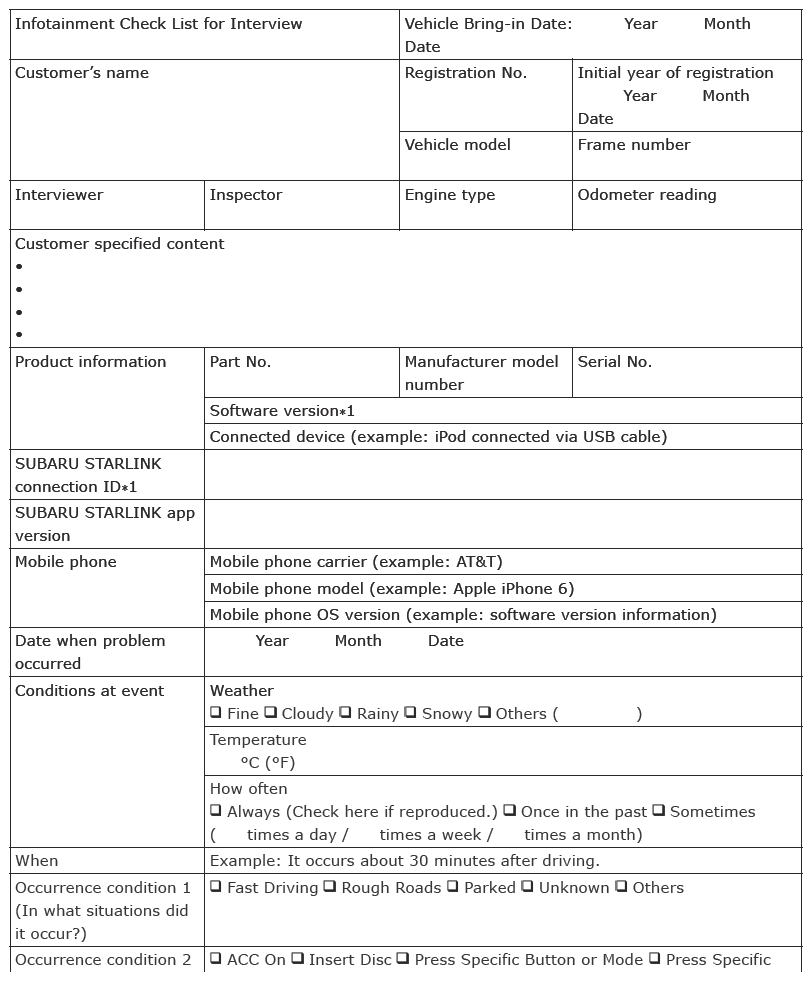

G13877421Courtesy of SUBARU OF AMERICA, INC.

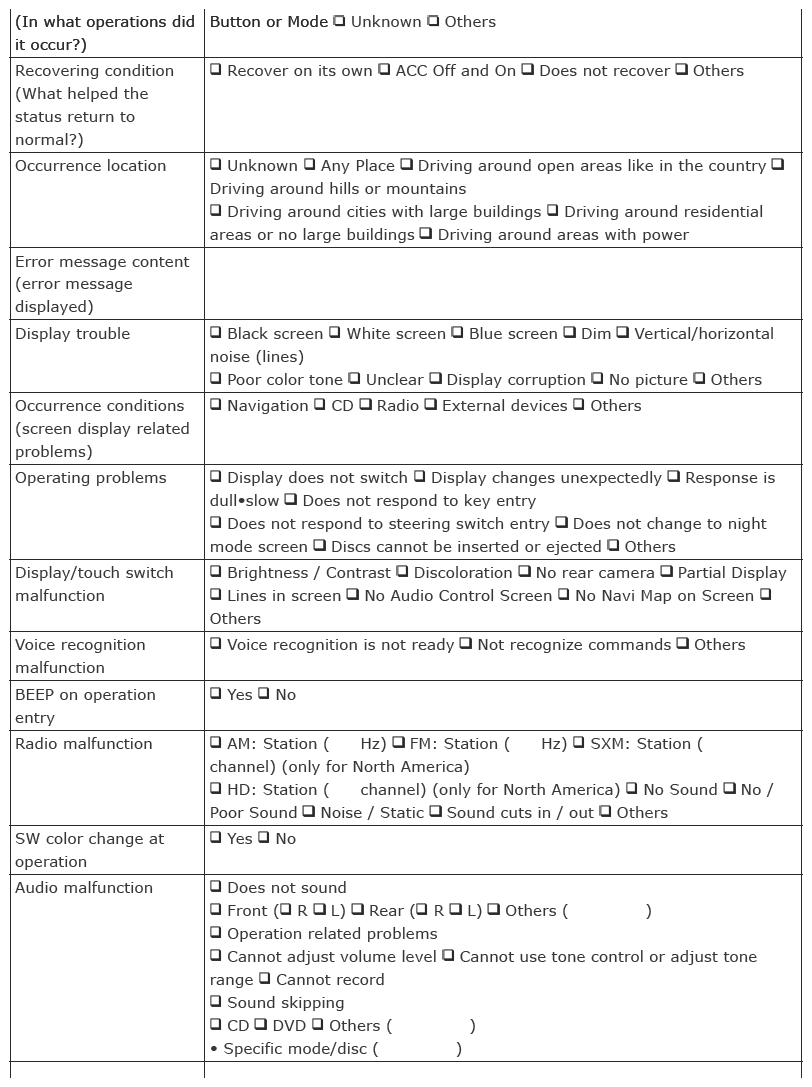

G13877422Courtesy of SUBARU OF AMERICA, INC.

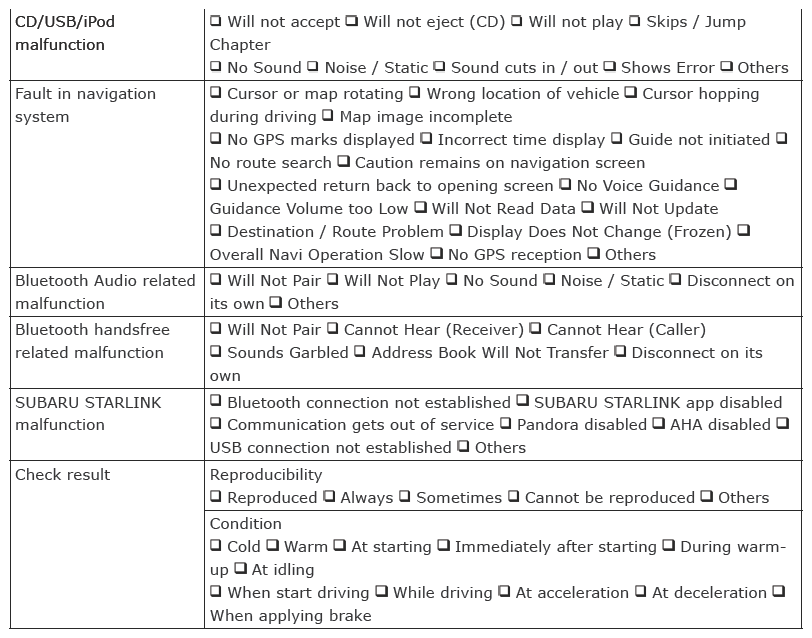

G13877423Courtesy of SUBARU OF AMERICA, INC.

*1: For each confirmation procedure, refer to the corresponding service diagnostics mode. Ref. to INFOTAINMENT (DIAGNOSTICS)>Service Diagnostics Mode>OPERATION .
