Front Speaker: Removal: Tweeter

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the trim panel assembly A pillar. Ref. to EXTERIOR/INTERIOR TRIM>UPPER INNER TRIM>REMOVAL .

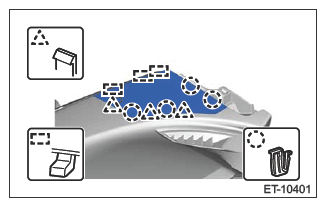

  3. Remove the grille speaker side.
    1. Release the clips, hooks and claws, then detach the grille speaker side.
    G13226536Courtesy of SUBARU OF AMERICA, INC.

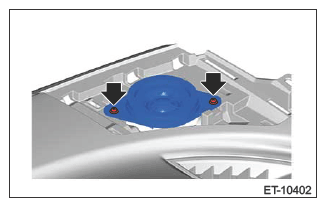

  4. Remove the speaker assembly tweeter.
    1. Remove the screws.

      Preparation tool:

      Stubby screwdriver

      G13226537Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the speaker assembly tweeter.
