Radar Sensor LH (Master)

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face rear. Ref. to EXTERIOR/INTERIOR TRIM>REAR BUMPER>REMOVAL .

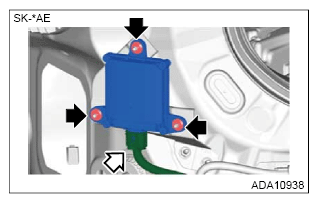

  3. Remove the radar sensor LH (master).
    1. Disconnect the connector.
    2. Remove the nut and remove the radar sensor LH (master).
    G12401751Courtesy of SUBARU OF AMERICA, INC.

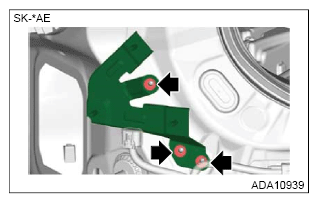

  4. Remove the radar bracket.
    1. Remove the nut and remove the radar bracket.
    G12401752Courtesy of SUBARU OF AMERICA, INC.
