DTC P2530: Ignition Switch Run Position Circuit: Notes
1. -
DTC detecting condition:
Immediately at fault recognition
Trouble symptom:
Faulty TCM operation

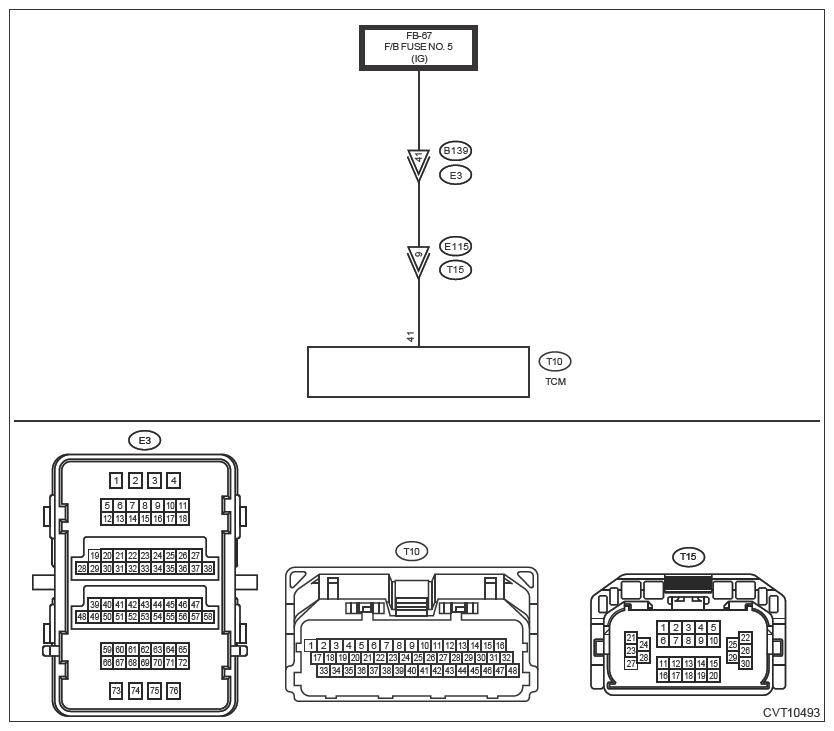

Wiring diagram:
CVT control system Ref. to WIRING SYSTEM>CVT CONTROL SYSTEM .
CAUTION:
- Use CHECK BOARD when measuring the TCM terminal voltage and resistance.
- After servicing or replacing faulty parts, perform the last step of the basic diagnostic procedure. Ref. to TRANSMISSION (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE .
- CHECK CONNECTOR
.
Check the installing condition of TCM connector.
Is the TCM connector installed properly?
Yes : Go to 2 .
No : Install the TCM connector.
- CHECK INPUT VOLTAGE OF TCM
.
- Turn the ignition switch to OFF.
- Disconnect the TCM connector.
- Turn the ignition switch to ON.
- Measure the voltage between TCM connector and chassis ground. (While wiggling the harness)
Connector & terminal
(T10) No. 41 (+) - Chassis ground (-):
Is the voltage 8 V or more?
Yes : Even if DTC is detected, the circuit has returned to a normal condition at this time.
Reproduce the failure, and then perform the diagnosis again.
NOTE: In this case, the following items may be the cause of fault.- Open circuit or short circuit to ground of harness between TCM connector and ignition switch connector (IG relay 1 connector for model with push button start)
- Poor contact of ignition switch connector (IG relay 1 connector for model with push button start)
- Poor contact of ignition switch (IG relay 1 for model with push button start)
No : Repair the harness and connector.
NOTE: In this case, repair the following item:- Open circuit or short circuit to ground of harness between TCM connector and ignition switch connector (IG relay 1 connector for model with push button start)
- Poor contact of ignition switch connector (IG relay 1 connector for model with push button start)
- Poor contact of ignition switch (IG relay 1 for model with push button start)
