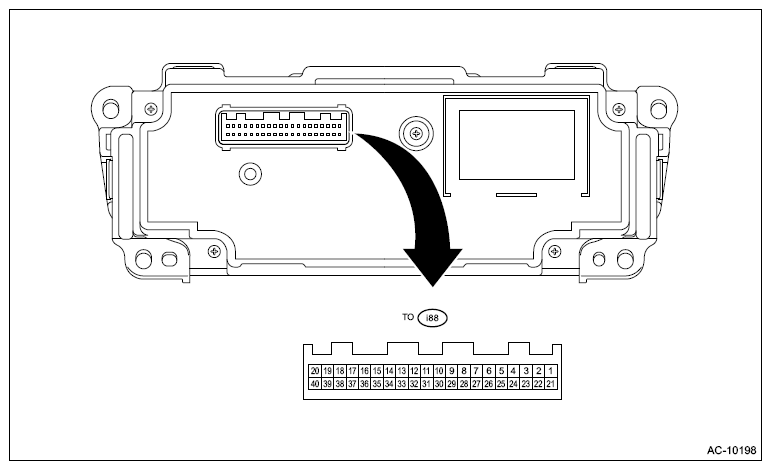

| (i88) No. 1 |
Mode door actuator #4 |
Digital signal; cannot be measured |
- |
| (i88) No. 2 |
Mode door actuator #3 |
Digital signal; cannot be measured |
- |
| (i88) No. 3 |
Mode door actuator #2 |
Digital signal; cannot be measured |
- |
| (i88) No. 4 |
Mode door actuator #1 |
Digital signal; cannot be measured |
- |
| (i88) No. 5 |
- |
- |
- |
| (i88) No. 6 (+) ←→ (i88) No. 8 (-) |
Intake door actuator drive signal (FRESH) |
FRESH mode |
8 V or more |
| (i88) No. 7 (+) ←→ Chassis ground (-) |
Hazard switch |
Hazard switch: ON |
Switch OFF: Battery voltage
Switch ON: 0 V |
| (i88) No. 8 (+) ←→ (i88) No. 6 (-) |
Intake door actuator (RECIRC) |
RECIRC mode |
8 V or more |
| (i88) No. 9 (+) ←→ Chassis ground (-) |
Blower fan ON signal |
Blower fan is ON |
1 V or less |
| (i88) No. 10 (+) ←→ Chassis ground (-) |
5 V power supply |
Ignition switch ON |
5 V |
| (i88) No. 11 |
- |
- |
- |
| (i88) No. 12 (+) ←→ Chassis ground (-) |
Intake door potentiometer signal |
Ignition switch ON |
0 - 5 V |
| (i88) No. 13 (+) ←→ Chassis ground (-) |
Pressure sensor (PD) |
Ignition switch ON |
0.1 - 4.9 V |
| (i88) No. 14 (+) ←→ Chassis ground (-) |
GND for sensors |
Always |
1 V or less |
| (i88) No. 15 (+) ←→ Chassis ground (-) |
ACC power supply |
ACC ON |
Battery voltage |
| (i88) No. 16 (+) ←→ Chassis ground (-) |
Sunload sensor |
Sunlight is contacting sensor |
1 - 4 V |
| (i88) No. 17 (+) ←→ Chassis ground (-) |
In-vehicle sensor |
Ignition switch ON |
25°C: 2.5 V |
| (i88) No. 18 (+) ←→ Chassis ground (-) |
Post evaporator sensor |
Depends on temperature after the evaporator. |
1 - 4.5 V |
| (i88) No. 19 |
CAN Lo |
Digital signal; cannot be measured |
- |
| (i88) No. 20 |
CAN Hi |
Digital signal; cannot be measured |
- |
| (i88) No. 21 |
Air mix door actuator LH #4 |
Digital signal; cannot be measured |
- |
| (i88) No. 22 |
Air mix door actuator LH #3 |
Digital signal; cannot be measured |
- |
| (i88) No. 23 |
Air mix door actuator LH #2 |
Digital signal; cannot be measured |
- |
| (i88) No. 24 |
Air mix door actuator LH #1 |
Digital signal; cannot be measured |
- |
| (i88) No. 25 |
Air mix door actuator #4 or air mix door actuator RH #4 |
Digital signal; cannot be measured |
- |
| (i88) No. 26 |
Air mix door actuator #3 or air mix door actuator RH #3 |
Digital signal; cannot be measured |
- |
| (i88) No. 27 |
Air mix door actuator #2 or air mix door actuator RH #2 |
Digital signal; cannot be measured |
- |
| (i88) No. 28 |
Air mix door actuator #1 or air mix door actuator RH #1 |
Digital signal; cannot be measured |
- |
| (i88) No. 29 |
- |
- |
- |
| (i88) No. 30 |
- |
- |
- |
| (i88) No. 31 (+) ←→ Chassis ground (-) |
Battery power supply |
Always |
Battery voltage |
| (i88) No. 32 (+) ←→ Chassis ground (-) |
Ignition power supply |
Ignition ON |
Battery voltage |
| (i88) No. 33 (+) ←→ Chassis ground (-) |
Humidity sensor |
Ignition switch ON (Fluctuates depending on temperature of the vehicle interior.) |
1 - 4.5 V |
| (i88) No. 34 (+) ←→ Chassis ground (-) |
GND |
Always |
1 V or less |
| (i88) No. 35 |
Illumination power supply (-) |
Illumination ON (measured between (i88) No. 37 (+) <-> (i88) No. 35 (-)) |
Battery voltage |
| (i88) No. 36 (+) ←→ Chassis ground (-) |
Variable compressor solenoid valve drive signal |
Ignition switch ON Blower switch ON A/C switch ON |
2 V - 12 V |
| (i88) No. 37 (+) ←→ (i88) No. 35 (-) |
Illumination power supply (+) |
Illumination ON |
Battery voltage |
| (i88) No. 38 (+) ←→ Chassis ground (-) |
Pressure sensor (PH) |
Ignition switch ON |
0.1 - 4.9 V |
| (i88) No. 39 (+) ←→ Chassis ground (-) |
Heater core sensor |
Ignition switch ON (Fluctuates depending on temperature after the heater core.) |
0.5 - 4.0 V |
| (i88) No. 40 (+) ←→ Chassis ground (-) |
Fan control signal |
Ignition switch: ON, Blower switch: ON |
1st gear: Approx. 10.0 V |
| 2nd gear: Approx. 9.0 V |
| 3rd gear: Approx. 8.0 V |
| 4th gear: Approx. 7.0 V |
| 5th gear: Approx. 6.0 V |
| 6th gear: Approx. 4.5 V |
| 7th gear: Approx. 2.0 V |
