DTC P1498: Coil 4 EGR "A" Control Circuit Low: Notes

1. -

DTC detecting condition:

Immediately at fault recognition

Trouble Symptom:

Improper idling
Poor driving Performance
Engine breathing

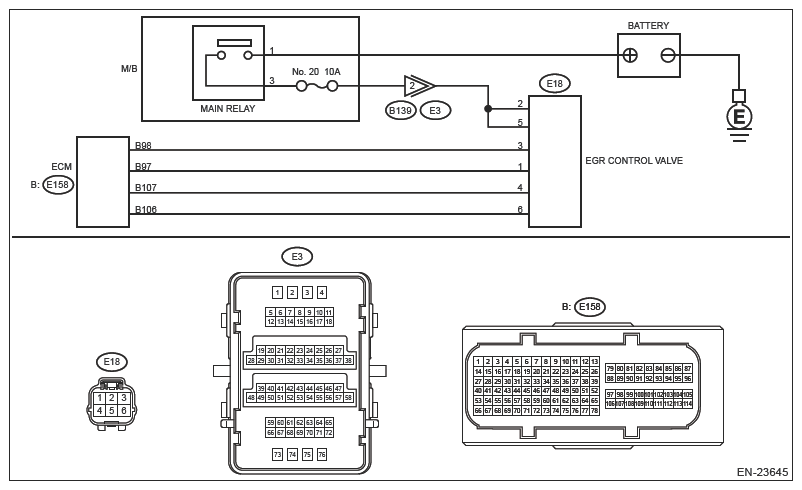

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

CHECK EGR CONTROL VALVE POWER SUPPLY .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from the EGR control valve.
3. Turn the ignition switch to ON.
4. Measure the voltage between EGR control valve connector and engine ground.
  Connector and terminal

  (E18) No. 2 (+) - Engine ground (-):

  (E18) No. 5 (+) - Engine ground (-):
Is the voltage 10 V or more?

Yes : Go to 2 .

No : Repair the following item.
- Open circuit in harness between EGR control valve and M/B
- Poor contact of coupling connector
- Blown out of fuse
CHECK HARNESS BETWEEN ECM AND EGR CONTROL VALVE CONNECTOR (OPEN) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Measure the resistance between ECM connector and EGR control valve connector.
  Connector and terminal

  DTC P1492; (E158) No. 98 - (E18) No. 3:

  DTC P1494; (E158) No. 97 - (E18) No. 1:

  DTC P1496; (E158) No. 107 - (E18) No. 4:

  DTC P1498; (E158) No. 106 - (E18) No. 6:
Is the resistance less than 1 Ω?

Yes : Go to 3 .

No : Repair the open circuit of the harness between the ECM connector and EGR control valve connector.
CHECK HARNESS BETWEEN ECM AND EGR CONTROL VALVE CONNECTOR (SHORT TO GROUND) .
Measure the resistance between the ECM connector and engine ground.

Connector and terminal

DTC P1492; (E158) No. 98 - Engine ground:

DTC P1494; (E158) No. 97 - Engine ground:

DTC P1496; (E158) No. 107 - Engine ground:

DTC P1498; (E158) No. 106 - Engine ground:

Is the resistance 1 MΩ or more?

Yes : Go to 4 .

No : Repair ground short circuit of harness between ECM connector and EGR control valve connector.
CHECK FOR POOR CONTACT .
Check for poor contact between ECM connector and EGR control valve connector.

Is there poor contact in ECM or EGR control valve connector?

Yes : Repair the poor contact of ECM or EGR control valve connector.

No : Replace EGR control valve. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>EGR CONTROL VALVE .
