DTC P0193: Fuel Rail Pressure Sensor Circuit High Bank 1: Notes

1. -

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

Improper idling
Poor driving performance

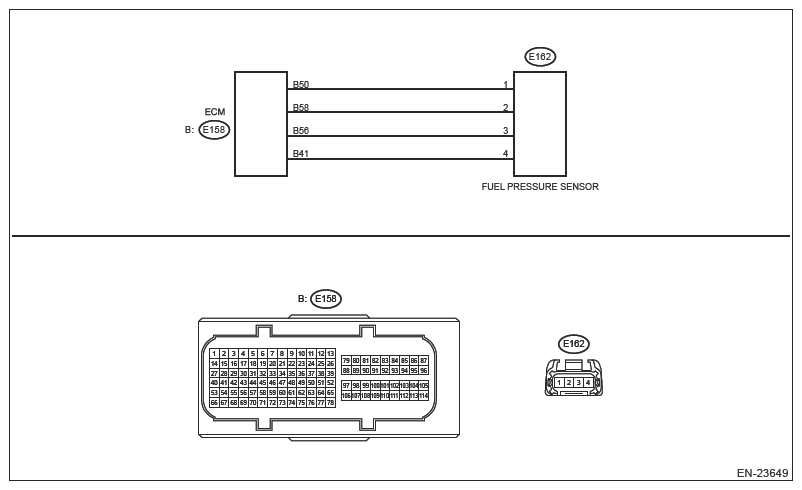

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

CHECK DATA MONITOR .
1. Start the engine.
2. Using the Subaru Select Monitor, read the value in [Fuel Rail Pressure A].
  NOTE: For detailed operation procedures, refer to "Common (Diagnostics)". Ref. to COMMON (DIAG)>DATA MONITOR .
Is the value of [Fuel Rail Pressure A] approx. 25000 kPa (3625 psi)?

Yes : Go to 2 .

No : Refer to "Check non-permanent occurrence malfunctions". Ref. to ENGINE (DIAGNOSTICS) (H4DO)>GENERAL DESCRIPTION>INSPECTION>CHECK NON-PERMANENT OCCURRENCE MALFUNCTIONS .
CHECK FUEL PRESSURE SENSOR POWER SUPPLY .
1. Turn the ignition switch to OFF.
2. Disconnect the connector of the fuel pressure sensor.
3. Turn the ignition switch to ON.
4. Measure the voltage between fuel pressure sensor connector and engine ground.
  Connector and terminal

  (E162) No. 4 (+) - Engine ground (-):
Is the voltage 4.5 - 5.5 V?

Yes : Go to 3 .

No : Go to 5 .
CHECK HARNESS BETWEEN ECM AND FUEL PRESSURE SENSOR CONNECTOR (OPEN) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Measure the resistance of harness between ECM connector and fuel pressure sensor connector.
  Connector and terminal

  (E158) No. 56 - (E162) No. 3:

  (E158) No. 58 - (E162) No. 2:
Is the resistance less than 1 Ω?

Yes : Go to 4 .

No : Repair the open circuit in harness between ECM connector and fuel pressure sensor connector.
CHECK HARNESS BETWEEN ECM AND FUEL PRESSURE SENSOR CONNECTOR (SHORT TO POWER SUPPLY) .
1. Connect all connectors.
2. Turn the ignition switch to ON.
3. Measure the voltage between ECM connector and fuel pressure sensor connector and engine ground.
  Connector and terminal

  (E158) No. 56 (+) - Engine ground (-):

  (E162) No. 3 (+) - Engine ground (-):
Is the voltage 5 V or more?

Yes : Repair the short circuit to power in the harness between ECM connector and fuel pressure sensor connector.

No : Replace the fuel pressure sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PRESSURE SENSOR .
CHECK HARNESS BETWEEN ECM AND FUEL PRESSURE SENSOR CONNECTOR (OPEN) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Measure the resistance of harness between ECM connector and fuel pressure sensor connector.
  Connector and terminal

  (E158) No. 41 - (E162) No. 4:
Is the resistance less than 1 Ω?

Yes : Go to 6 .

No : Repair the open circuit in harness between ECM connector and fuel pressure sensor connector.
CHECK HARNESS BETWEEN ECM AND FUEL PRESSURE SENSOR CONNECTOR (SHORT TO GROUND) .
Measure the resistance between ECM connector and fuel pressure sensor connector and engine ground.

Connector and terminal

(E158) No. 41 - Engine ground:

(E162) No. 4 - Engine ground:

Is the resistance 1 MΩ or more?

Yes : Replace the ECM. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>ENGINE CONTROL MODULE (ECM) .

No : Repair the ground short circuit of harness between ECM connector and fuel pressure sensor connector.
