Diagnostic Method 2

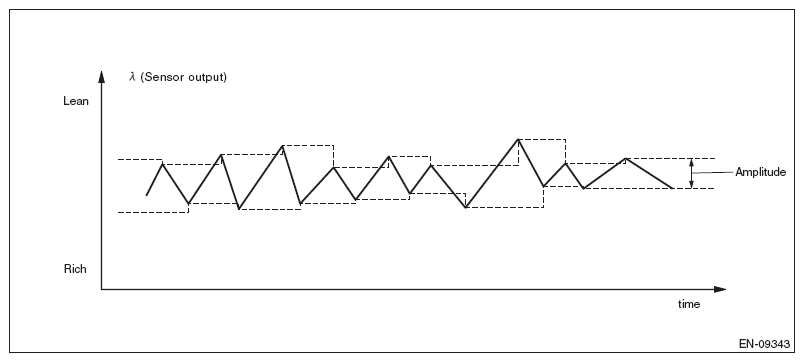

Detect the malfunction by calculating the average amplitude of A.

Courtesy of SUBARU OF AMERICA, INC.

Judge as NG when the following conditions are established.

JUDGMENT VALUE SPECIFICATION

Malfunction Criteria	Threshold Value
Average value for λ amplitude	More than 0.075

Time needed for diagnosis : 90 s

Malfunction indicator light illumination : Illuminates when malfunction occurs in 2 continuous driving cycles.
