PCV System 2

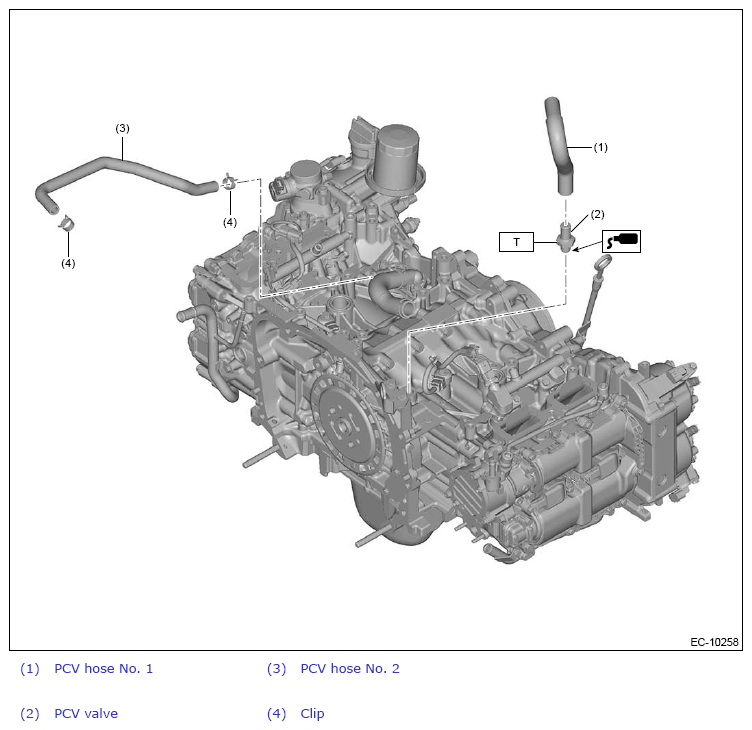

Fig 1: PCV System 2 Components
G13867667Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 23 (2.3, 17.0)
