Power Seat And Remote Control Mirror Control Module (Model With Seat Position Memory)

  1. Prior to starting work, check the following precautions. Ref. to SEATS>General Description>CAUTION .
  2. Operate the switch to move the front seat (driver's seat) to the following positions.
    • Slide: rearmost end
    • Reclining: most upright
    • Lifter: down most end
    • Tilt: down most end
  3. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  4. Remove the driver's seat from the vehicle.

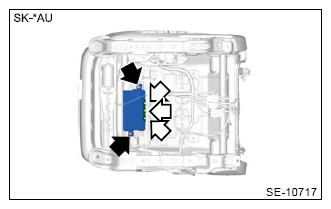

  5. Remove the power seat and remote control mirror control module.
    1. Disconnect the connector.
    2. Remove the nuts and remove the power seat and remote control mirror control module.
    G13226828Courtesy of SUBARU OF AMERICA, INC.
