Check Memory Height Switch Input Circuit

NOTE: Before performing diagnosis, initialize the power rear gate system by opening the power rear gate in manual operation, and then operating the power rear gate auto closer in the partially latched state.

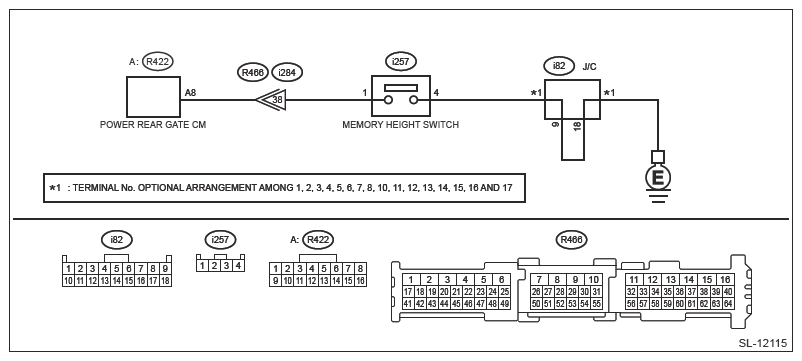

Wiring diagram:

Power rear gate system Ref. to WIRING SYSTEM>POWER REAR GATE SYSTEM>WIRING DIAGRAM .

G13877570Courtesy of SUBARU OF AMERICA, INC.
  1. CHECK DATA MONITOR  .

    Using the Subaru Select Monitor, check the following items in the [Data Monitor] of [Power Rear Gate]. Ref. to POWER REAR GATE (DIAGNOSTICS)>DATA MONITOR .

    • Memory stop SW

    Does the display switch between OFF ← → ON according to memory height switch operation?

    Yes:  Input circuit is normal.

    No:  Go to  2 .

  2. CHECK HARNESS (OPEN CIRCUIT)  .
    1. Disconnect the Power rear gate control module connector in the order of (R423) - (R422).
    2. Disconnect the connector of memory height switch.
    3. Measure the resistance between Power rear gate control module connector and memory height switch connector.

      Connector & terminal

      (R422) No. 8 - (i257) No. 1:

    Is the resistance less than 10 Ω?

    Yes:  Go to  3 .

    No:  Repair or replace the open circuit of harness.

  3. CHECK HARNESS (GROUND SHORT CIRCUIT)  .

    Measure the resistance between Power rear gate control module connector and chassis ground.

    Connector & terminal

    (R422) No. 8 - Chassis ground:

    Is the resistance 1 MΩ or more?

    Yes:  Go to  4 .

    No:  Repair or replace the short circuit of the harness.

  4. CHECK HARNESS (OPEN CIRCUIT)  .

    Measure the resistance between the memory height switch connector and chassis ground.

    Connector & terminal

    (i257) No. 4 - Chassis ground:

    Is the resistance less than 10 Ω?

    Yes:  Go to  5 .

    No:  Repair or replace the open circuit of harness.

  5. CHECK MEMORY HEIGHT SWITCH  .

    Measure the resistance between switch terminals.

    Terminals

    No. 1 - No. 4:

    Is the resistance 1 MΩ or more at OFF, and less than 1 Ω at ON?

    Yes:  Go to  6 .

    No:  Replace the memory height switch. Ref. to POWER REAR GATE SYSTEM>MEMORY HEIGHT SWITCH .

  6. CHECK CONNECTOR  .

    Is there poor contact of connector?

    Yes:  Repair or replace the poor contact of connector.

    No:  Replace Power rear gate control module. Ref. to POWER REAR GATE SYSTEM>POWER REAR GATE CONTROL MODULE .
