2.0 L Model

Install the knock sensor to the cylinder block, and connect the connector to the knock sensor.
NOTE:

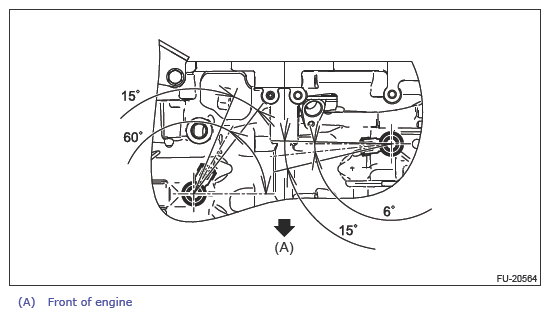

- Knock sensor must be positioned so that the connector center comes within the range shown in the figure.
- Make sure that the knock sensor and its connector do not touch the adjacent parts.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
