Rear Shock Absorber

• Impreza model

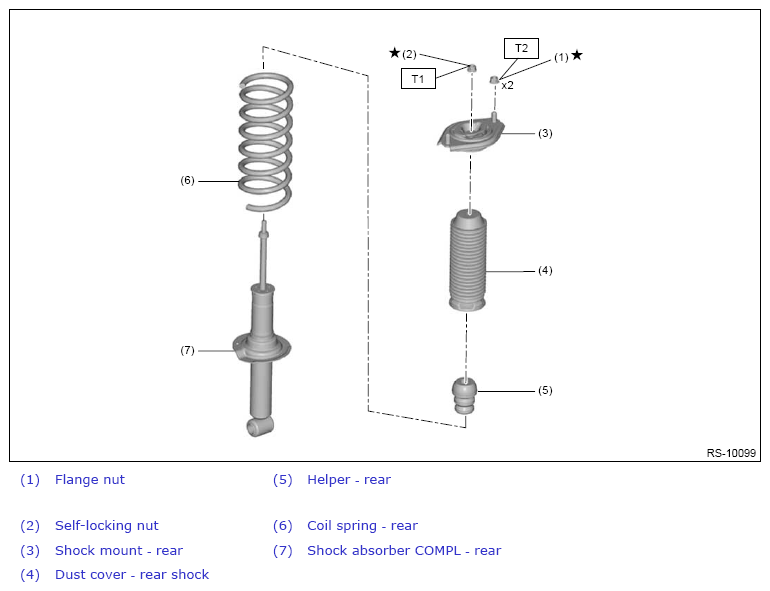

Fig 1: Rear Shock Absorber Components - Impreza Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 30 (3.1, 22.1)

• Crosstrek model

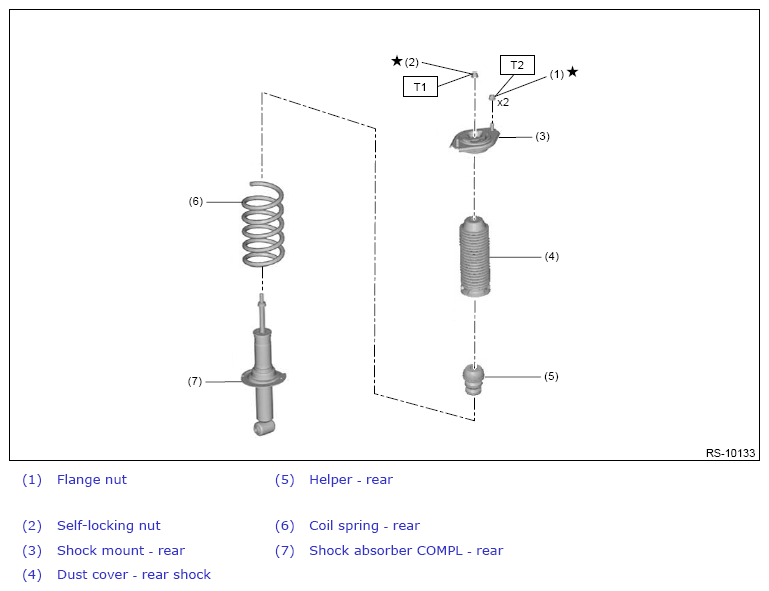

Fig 2: Rear Shock Absorber Components - Crosstrek Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 30 (3.1, 22.1)
