CROSSTREK Model

  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the crossmember support - rear. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  4. Remove the front arm assembly.
    CAUTION: Be careful not to damage the boot of the ball joint.
  1. Remove the bolt from the front axle housing.
  2. Lower the front arm assembly, and remove the ball joint portion from the front axle housing.
    G13231431Courtesy of SUBARU OF AMERICA, INC.

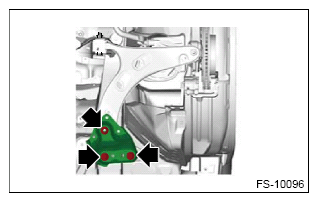

  3. Remove the front arm rear plate.
    G12400579Courtesy of SUBARU OF AMERICA, INC.

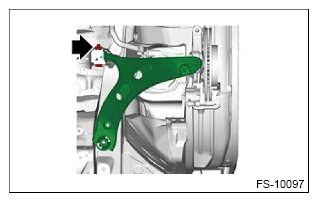

  4. Remove the front arm assembly.
    G12400580Courtesy of SUBARU OF AMERICA, INC.
