Structural Diagram 4 (Battery Cable Part)

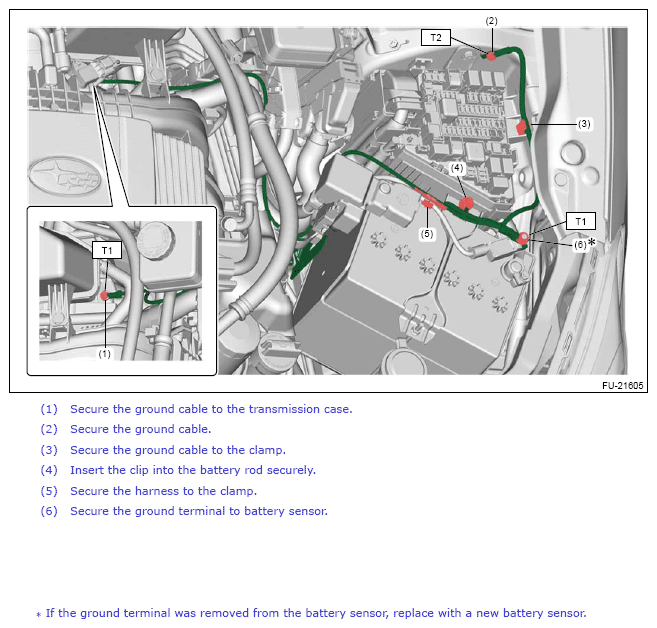

Fig 1: Engine Wiring Harness Components - Structural Diagram 4 (Battery Cable Part)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 11 (1.1, 8.1)

T2: 13 (1.3, 9.6)

* If the ground terminal was removed from the battery sensor, replace with a new battery sensor  .
