Structural Diagram 2

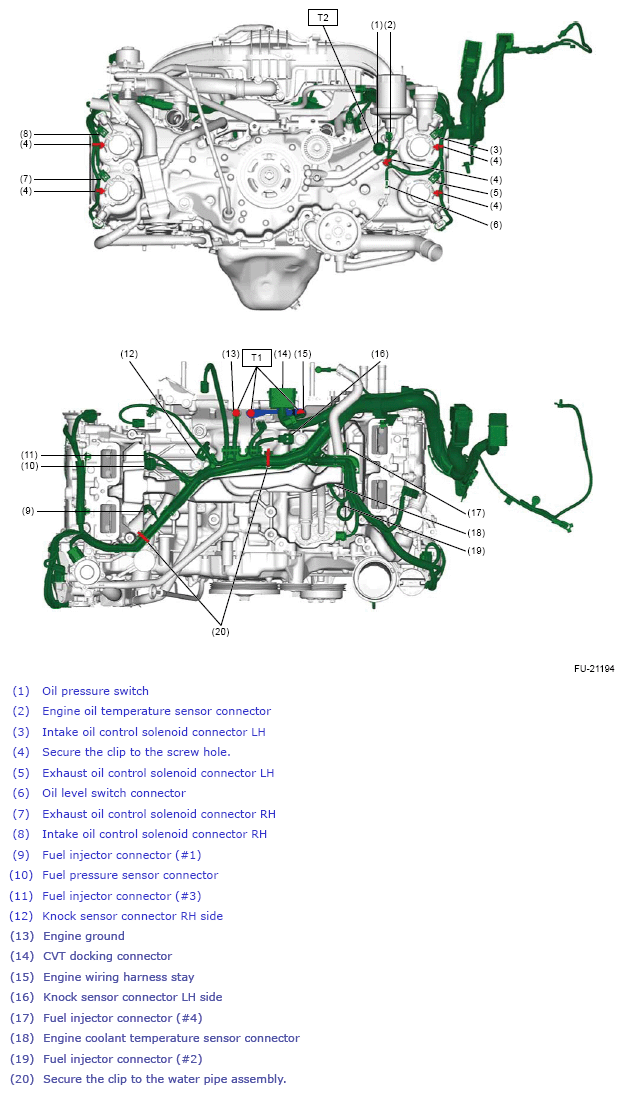

Fig 1: Engine Wiring Harness Components (Structural Diagram 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 19 (1.9, 14.0)

T2:  Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PRESSURE SWITCH>INSTALLATION .
