Cover Of Inverter With Converter Assembly

  1. Lift up the vehicle.

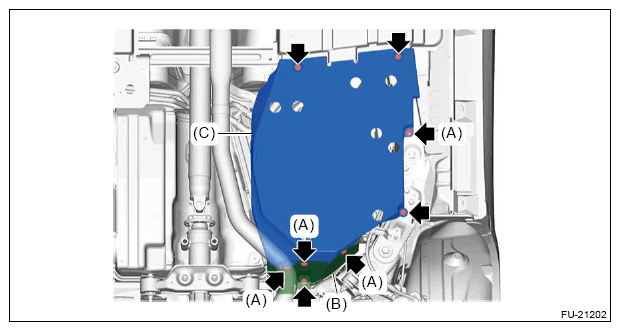

  2. Remove the bolt and clip (A) and remove the cover No. 1 (B) of inverter with converter assembly and the cover No. 2 (C) of inverter with converter assembly.
G13230968Courtesy of SUBARU OF AMERICA, INC.
