Fuel Delivery and Evaporation Lines: Installation: Notes
- Install the fuel pipe assembly.

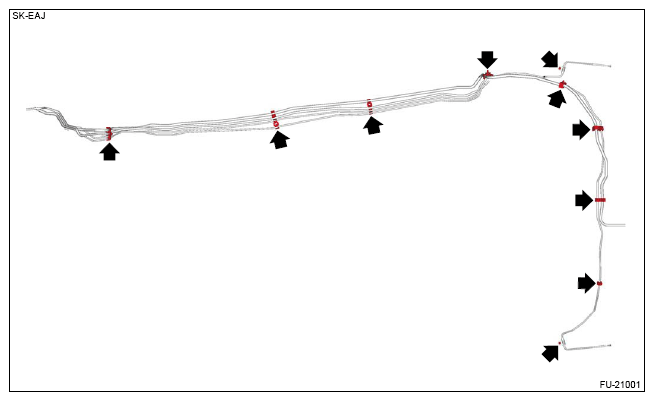

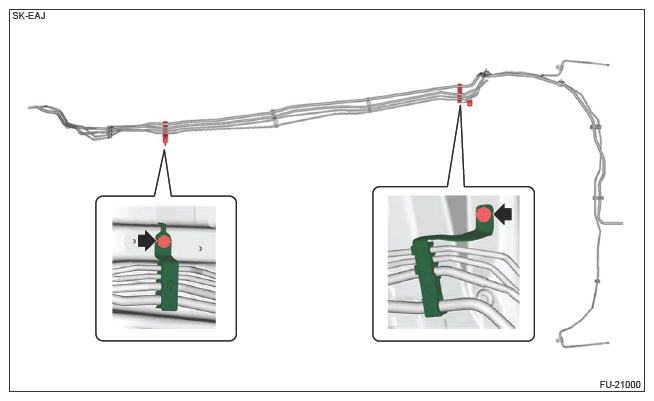

- Install the pipe clamp to the fuel pipe assembly, and then install the fuel pipe bracket B and fuel pipe bracket C.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Connect the brake pipes. Ref. to BRAKE>BRAKE HOSE>INSTALLATION>REAR BRAKE HOSE . Ref. to BRAKE>BRAKE PIPE>INSTALLATION>CENTER BRAKE PIPE .
- Install the floor under protector RH. Ref. to EXTERIOR/INTERIOR TRIM>FLOOR UNDER PROTECTOR>INSTALLATION .
- Connect the purge tube to the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE E) .
- Connect individual hoses to the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>GENERAL DESCRIPTION>COMPONENT>FUEL TANK 1 .
For information about connecting fuel filler hose, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>FUEL FILLER HOSE CONNECTION .
- Install the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL TANK>INSTALLATION .

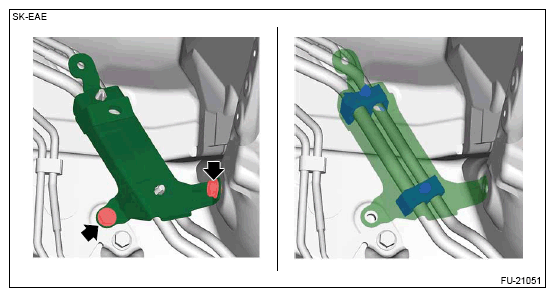

- Install the pipe clamp to the fuel pipe assembly, and then install the fuel pipe bracket A.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Lower the vehicle.

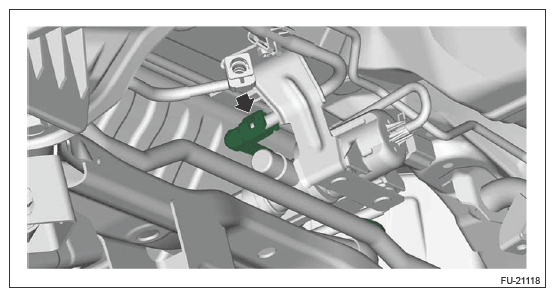

- Install the connector to the fuel pipe bracket A.

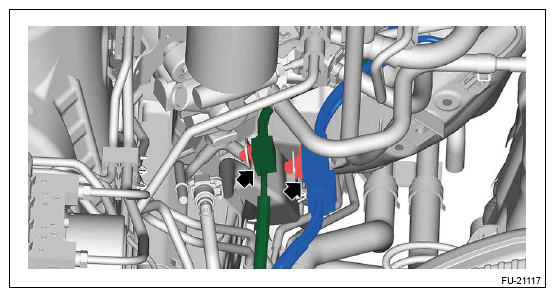

- Connect the evaporation hose to fuel pipe assembly.
- Connect the quick connector on the fuel delivery tube to the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE A) .

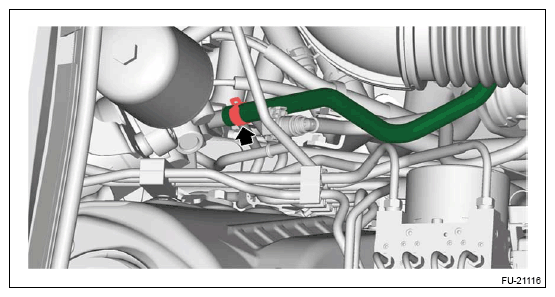

- Install the fuel delivery tube clamp to the fuel delivery tube.
