Exhaust Side

RH SIDE
1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
2. Lift up the vehicle.
3. Remove the front under cover. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

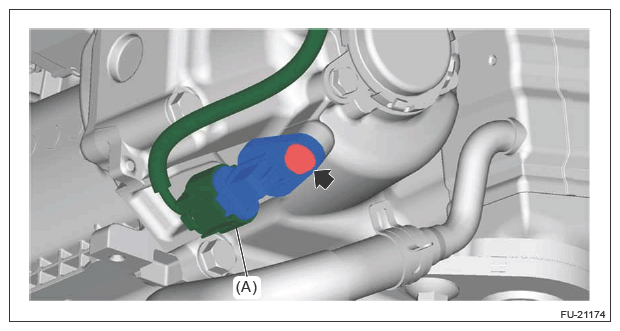

4. Disconnect the connector (A) and remove the camshaft position sensor.
Courtesy of SUBARU OF AMERICA, INC.
LH SIDE

Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
Lift up the vehicle.
Remove the front under cover. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

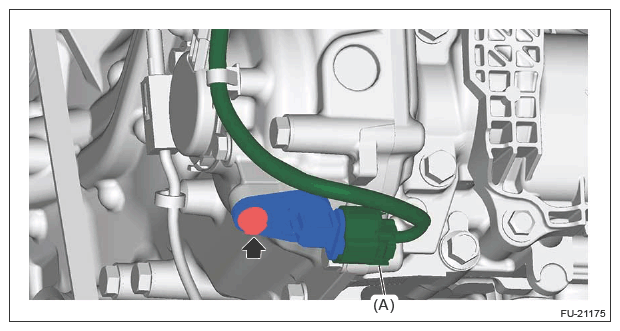

Disconnect the connector (A) and remove the camshaft position sensor.

G13230923

Courtesy of SUBARU OF AMERICA, INC.
