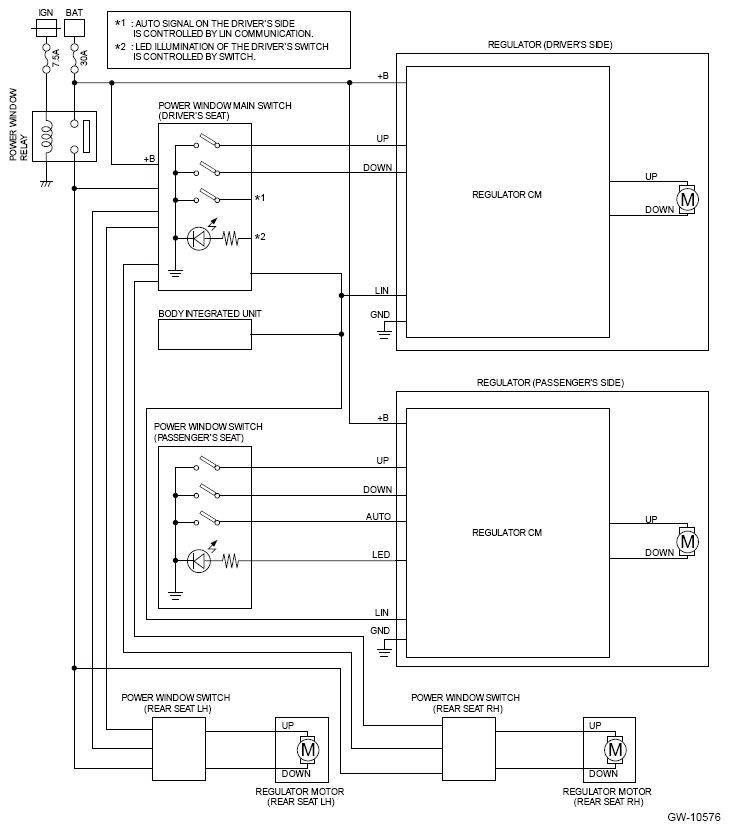

System Block Diagram
The front regulator and motor assembly is equipped with a control module that controls the operational speed. It is connected with the body integrated unit via LIN communication. They are operated by individual switches. Only front windows use PLS signals of motors for auto-reversing and controlling operational speed.
