Clutch Switch: Adjustment

  1. Loosen the lock nut of the clutch start switch.
  2. Fully depress the clutch pedal and hold it.

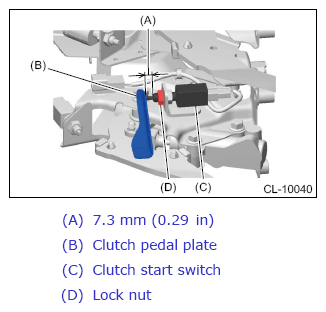

  3. Adjust the gap (A) between the clutch pedal plate and the clutch start switch to be 7.3 mm (0.29 in).
    G13937987Courtesy of SUBARU OF AMERICA, INC.
  4. Tighten the lock nut.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)
