Trailing Link: Removal

  1. Lift up the vehicle, and then remove the rear wheels.
  2. Remove the bracket of the cable assembly - parking brake or the electronic parking brake harness.

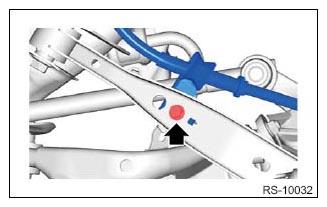

    • Except for hybrid model
      G11253847Courtesy of SUBARU OF AMERICA, INC.
    • Hybrid model
    G13591359Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolts and nuts, and then remove the trailing link.

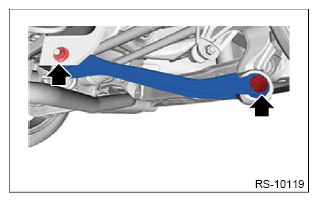

    • Impreza model
      G12400640Courtesy of SUBARU OF AMERICA, INC.

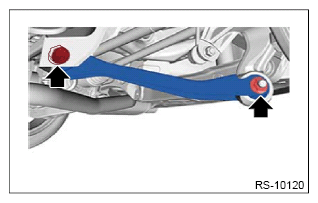

    • Crosstrek model
    G12400641Courtesy of SUBARU OF AMERICA, INC.
