General Description
>>
Components With Torque Specifications
>>
Side Airbag Sensor
Side Airbag Sensor
CAUTION:
Do not reuse mounting nuts.

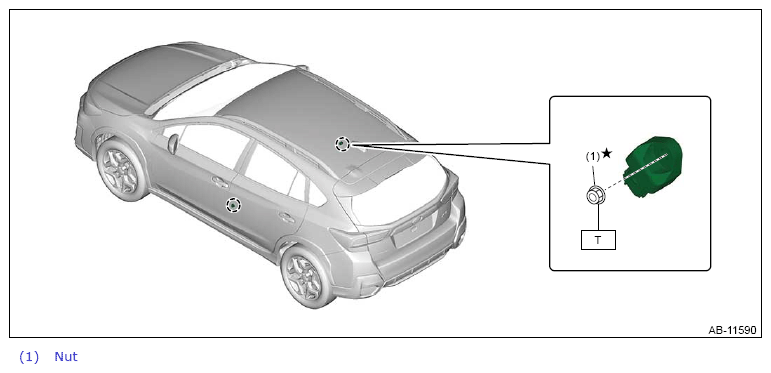

Fig 1: Side Airbag Sensor
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
