Curtain Airbag Module

CAUTION: The curtain airbag module cannot be reused if removed from the vehicle once, even if it has not operated yet.

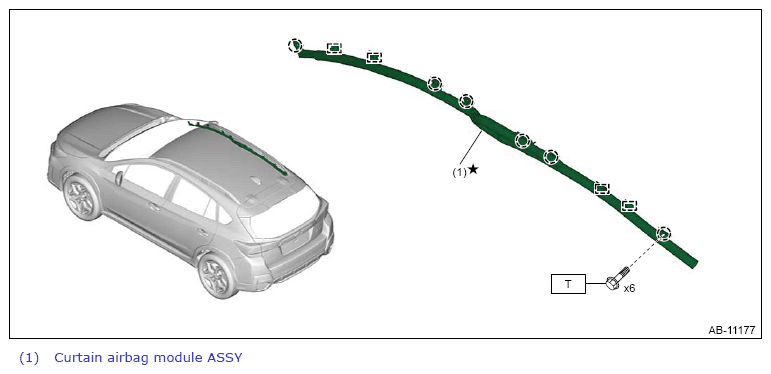

Fig 1: Curtain Airbag Module Components (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

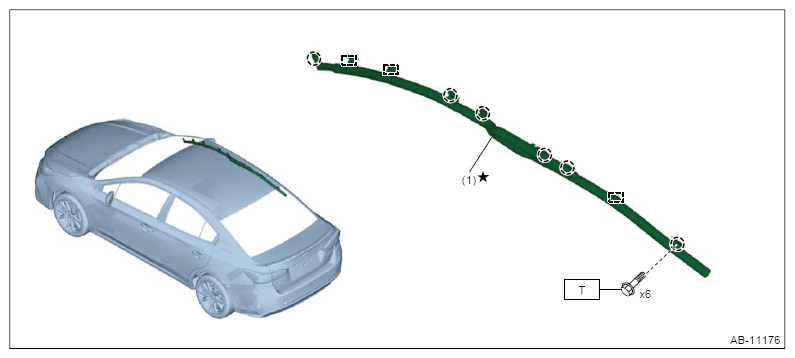

Fig 2: Curtain Airbag Module Components (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)

NOTE: Mounting bolts can be reused.
