Passenger's Airbag Module

  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  3. Remove the glove box assembly. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .

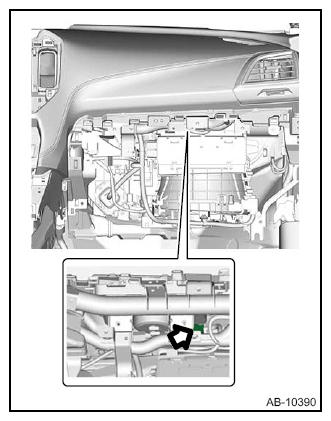

  4. Disconnect the passenger's airbag module connector. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>PASSENGER'S AIRBAG MODULE AND SEAT BELT PRETENSIONER .
    G11245850Courtesy of SUBARU OF AMERICA, INC.
  5. Short the terminal to the alligator clip furnished as AIRBAG DEPLOYMENT TOOL.
    CAUTION: The AIRBAG DEPLOYMENT TOOL should be kept shorted on the terminals until just before activation of airbag module.

    Preparation tool:

    ST: AIRBAG DEPLOYMENT TOOL (98299PA030)

  6. Connect the AIRBAG DEPLOYMENT TOOL (A) and TEST HARNESS ADAPTER AM (B).

    Preparation tool:

    ST: TEST HARNESS ADAPTER AM (98299FJ000)

    G10270509Courtesy of SUBARU OF AMERICA, INC.

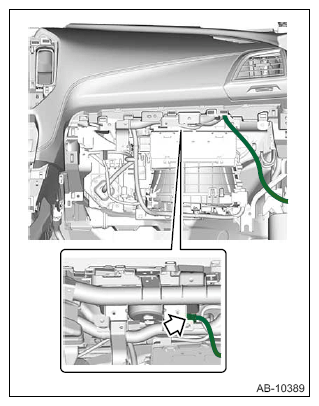

  7. Connect the TEST HARNESS ADAPTER AM to the airbag connector.
    G13938420Courtesy of SUBARU OF AMERICA, INC.
  8. Make sure there is no one inside the vehicle.
  9. Extend the wiring of AIRBAG DEPLOYMENT TOOL to the limit, and close all the windows and sunroof completely.
    G10270499Courtesy of SUBARU OF AMERICA, INC.
  10. Move the battery at least 5 m (16 ft) from the vehicle, and confirm safety in the area.
  11. Connect the AIRBAG DEPLOYMENT TOOL alligator clip to the battery negative (-) terminal.
  12. Connect the other cable of AIRBAG DEPLOYMENT TOOL to the battery positive (+) terminal, and activate the airbag module.
    CAUTION:
    • After activation, the airbag module will be extremely hot. Let it cool down for at least 40 minutes in an area with no one around.
    • Do not expose the activated airbag module to water.
    G10270500Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the passenger's airbag module. Ref. to AIRBAG SYSTEM>PASSENGER'S AIRBAG MODULE>REMOVAL .
  14. Place the activated airbag module in a sealed vinyl bag, then discard.
    G10270513Courtesy of SUBARU OF AMERICA, INC.
