Horn System: Horn: Installation

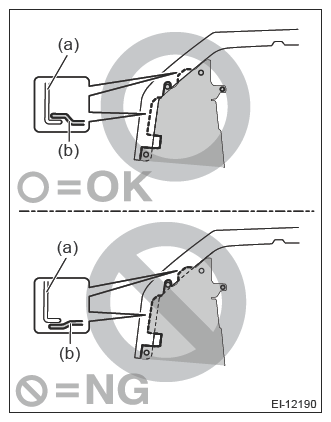

CAUTION: Install the mud guard - front so that the front end of the mud guard (b), except for the clip fixing point, comes inside the bumper face (a).

Courtesy of SUBARU OF AMERICA, INC.

Install the horn assembly.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the mud guard - front. (Horn assembly - Lo)
Install the under cover - front. (Horn assembly - Lo)
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Lower the vehicle. (Horn assembly - Lo)
Install the cover UPR - front. (Horn assembly - Hi)
Install the duct - air intake. (Horn assembly - Hi)
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
NOTE: For the hybrid model, connect the battery negative terminal.
