When Using Piano Wire

CAUTION:

Do not tightly pull the piano wire against the glass - front window edge.
Apply protective tape, etc, and be careful that the inner and outer components of the vehicle are not damaged.
Do not cross piano wires. Otherwise they may be cut.

Remove the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
NOTE: For the hybrid model, disconnect the battery negative terminal.
Remove the trim panel - front pillar UPR. Ref. to EXTERIOR/INTERIOR TRIM>UPPER INNER TRIM>REMOVAL .
Remove the cowl panel assembly. Ref. to EXTERIOR/INTERIOR TRIM>COWL PANEL>REMOVAL .
Disconnect the wiper deicer connector. (Models with wiper deicer)
Remove the stereo camera cover assembly and stereo camera assembly. (Models with EyeSight) Ref. to EYESIGHT>STEREO CAMERA>REMOVAL .

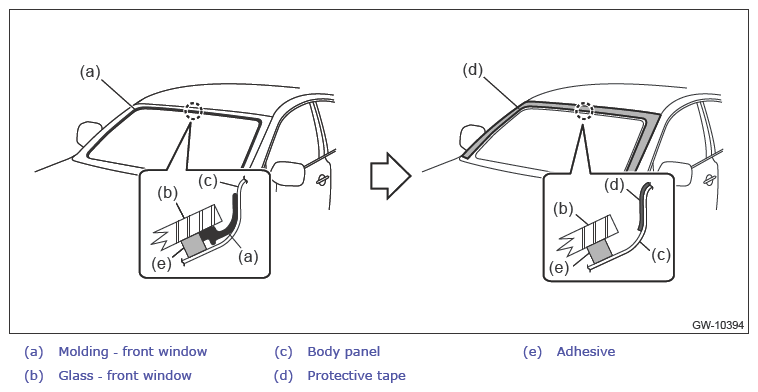

Remove the molding - front window from the glass - front window, and attach protective tape on the body side of the circumference of the glass - front window.

Courtesy of SUBARU OF AMERICA, INC.

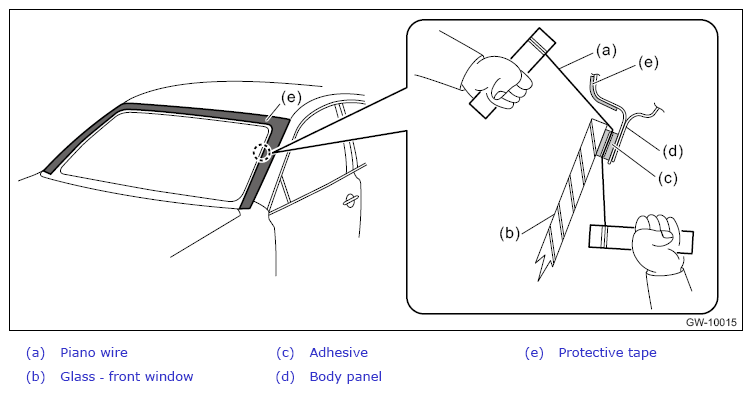

Remove the glass - front window.
1. Pass a piano wire through the adhesive part.
2. Pull the piano wire ends alternately to cut off the adhesive part and locating pin.
  CAUTION: Attach a piece of wood to both piano wire ends.
Courtesy of SUBARU OF AMERICA, INC.

Remove the locating pin. (When reusing the glass)

Attach tape to the locating pin outer surface to identify the installation position.

Courtesy of SUBARU OF AMERICA, INC.

Using a scraper, etc., remove locating pins (2 places).
CAUTION:
- Do not remove the tape because it is used as reference during installation.
- Be careful not to damage the glass - front window during operation.
