Model Without Keyless Access With Push Button Start

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly - column.

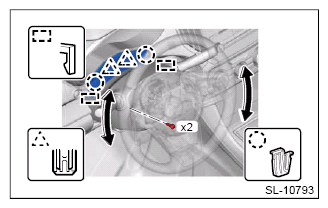

    1. Remove the clip, and remove the cover assembly - visor LWR.
    2. Remove the screws by turning the steering wheel to right and left.
      G12399074Courtesy of SUBARU OF AMERICA, INC.

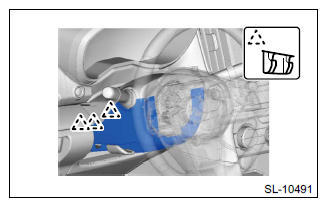

    3. Release the claws and remove the cover assembly - column LWR.
      G11246379Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Release the claws on RH side in the same procedure as on the LH side.

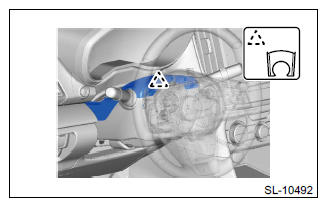

    4. Release the claws and remove the cover assembly - column UPR.
      G11246380Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the immobilizer antenna assembly.
    1. Disconnect the connector.
    2. Release the claws using a flat tip screwdriver or similar tool wrapped with protection tape, and remove the immobilizer antenna assembly.
    CAUTION: Do not apply excessive force to disengage the lock of immobilizer antenna assembly. Otherwise they may be broken because those parts are the products made of a plastic.
    G11246381Courtesy of SUBARU OF AMERICA, INC.
